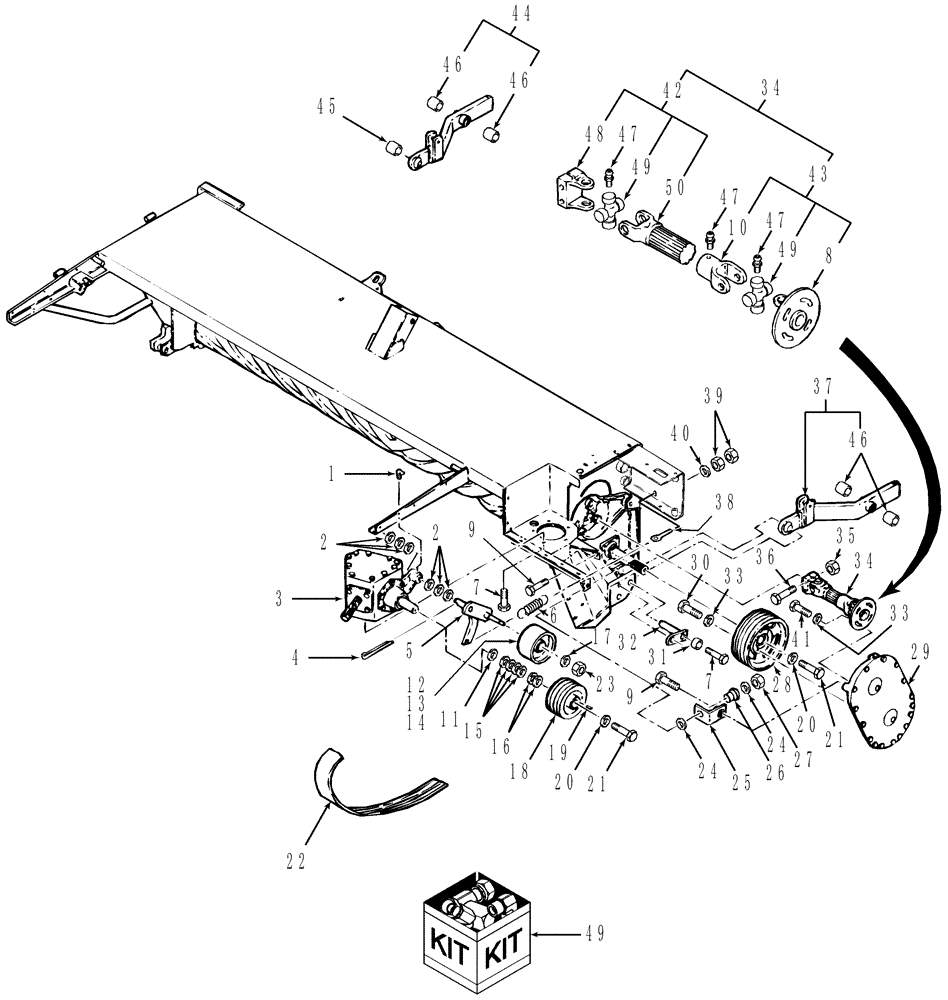

Запчасти Case IH DCX101 (58.102.02) - HEADER DRIVE (58) - ATTACHMENTS/HEADERS

1

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

2

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

3

87054839

GEARBOX

Bevel; Refer to Fig. 03.02

1шт.

Prior To PIN HCA0006607

1шт.

3

87054839R

REMAN-GEARBOX

Reman Gearbox, DCX101 Prior To PIN HCA0006607

1шт.

3

87054839C

CORE-GEARBOX

Return Number

1шт.

3

87545091

FINAL DRIVE

FINAL REDUCTION GEARBOX Gearbox, Bevel; Refer to Fig. 03.02

1шт.

From PIN HCA0006607

1шт.

3

87545091R

REMAN-GEARBOX

Reman Gearbox, DCX101 From PIN HCA0006607

1шт.

3

87545091C

CORE-GEARBOX

Return Number

1шт.

4

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

5

86634084

PIVOTING ARM

1шт.

6

87054556

TENSION SPRING

1шт.

7

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

7шт.

8

86520869

YOKE

& Plate

1шт.

9

86521622

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

2шт.

10

86520868

YOKE

Telescoping

1шт.

11

86510186

SPACER

1шт.

12

86632727

IDLER

1шт.

13

217994

SPACER

3/4" ID x 1"x 1-1/4" L

1шт.

14

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

2шт.

15

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

16

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

1шт.

17

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

18

86632264

PULLEY

7" OD

1шт.

19

87495

KEY,0.31" x 2.50" L

Square, 5/16" x 2-1/2"

1шт.

20

86516694

WASHER

2шт.

21

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

22

86627791

V-BELT,0.66" W x 76.80" L, 4 Ribs

1шт.

23

232-41412

LOCK NUT,3/4"-10, GC

1шт.

24

234567

WASHER

2шт.

25

86634083

BRACKET

1шт.

26

173893

MOUNTING PARTS

1шт.

27

85700693

NUT,5/8" - 11, Gr C

1шт.

28

86634082

SHEAVE

1шт.

29

86602361

GEARBOX

Conditioner, Refer to Fig. 03.03

1шт.

29

86602361R

REMAN-TRANSMISSION

Reman Gearbox

1шт.

29

86602361C

CORE-TRANSMISSION

Return Number, Gearbox, Conditioner

1шт.

29

87567908

GEARBOX

Conditioner, Refer to Fig. 03.03

1шт.

29

87567908R

REMAN-GEARBOX

DCX101, Reman Gearbox

1шт.

29

87567908C

CORE-GEARBOX

Return Number

1шт.

30

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

31

167381

SPACER

2шт.

32

86506026

PIN,28.57mm OD x 140mm L

2шт.

33

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

12шт.

34

86511008

DRIVE SHAFT

1шт.

35

232-4146

NUT,3/8"-16, GC

2шт.

36

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

37

86607955

LIFT ARM

LH

1шт.

38

36835

EYEBOLT,G2, 3/8"-16 x 6-1/2"

G2, 3/8"-16 x 6-1/2"

1шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

40

495-21044

WASHER,3/8"

1шт.

41

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

42

86520870

SHAFT

Output

1шт.

43

86520871

SHAFT

Input

1шт.

44

86607956

LIFT ARM

RH

1шт.

45

86603645

SPACER

1шт.

46

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

4шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

48

86520865

YOKE

1шт.

49

136908

SPIDER

2шт.

50

86520867

YOKE

& Shaft

1шт.
