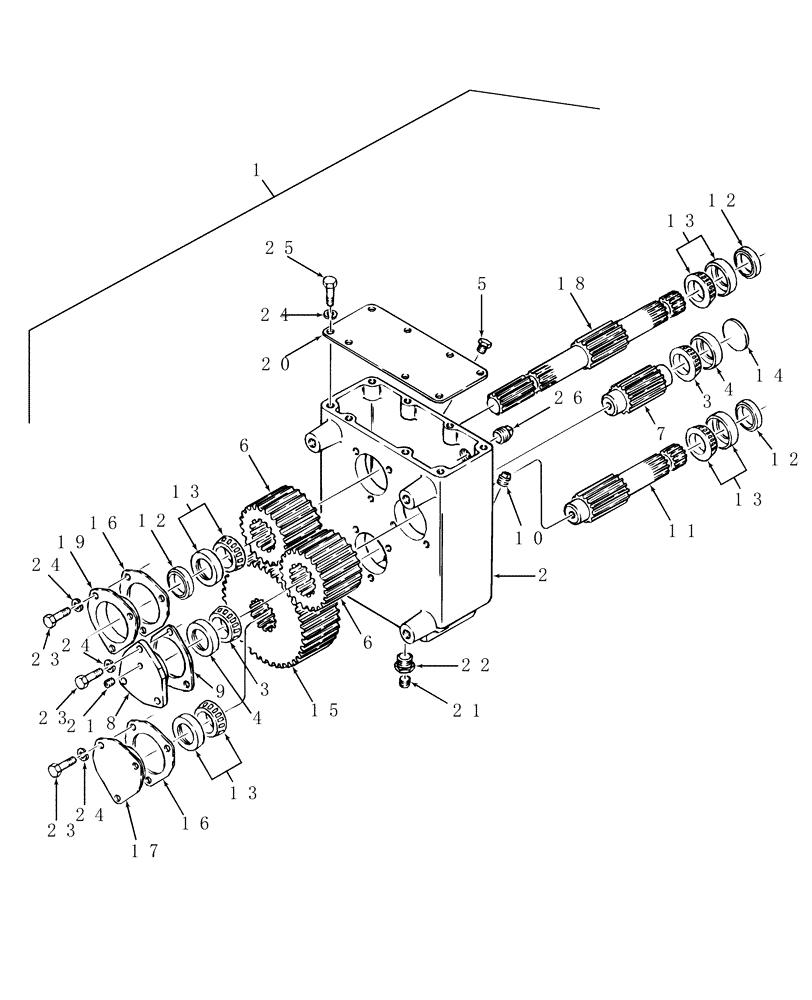

Запчасти Case IH DCX101 (58.100.04) - GEARBOX, STEP-UP (58) - ATTACHMENTS/HEADERS

1

86627215

GEARBOX

Step Up, Includes: Ref. 2 - 26

1шт.

1

86627215R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

86627215C

CORE-GEARBOX

Return Number, Gearbox, Step Up

1шт.

2

86505652

CASTING

Housing

1шт.

3

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

Inner, 1-3/8" ID x 31/32" Wide

2шт.

4

165964R1

BEARING CUP

2-7/8" OD

2шт.

5

572820

BREATHER

1шт.

6

692541

GEAR

Spur, 21T

2шт.

7

692538

IDLE SHAFT

Idler

1шт.

8

692535

BEARING ASSY

Bearing

1шт.

9

693049

SHIM,.005" Thk

1шт.

9

693050

SHIM,.007" Thk

1шт.

9

693051

SHIM,.020" Thk

1шт.

10

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

11

9803945

SHAFT

1шт.

12

634036

OIL SEAL

3шт.

13

86530145

TAPERED BEARING,34.92mm ID x 65.09mm OD x 21.08mm W

4шт.

14

9618005

PLUG,Exp, 2 11/16"

1шт.

15

692542

GEAR

Spur, 39T

1шт.

16

86515535

SHIM

.002"

1шт.

16

693046

SHIM,.005" Thk

1шт.

16

693047

SHIM,.007" Thk

1шт.

16

693048

SHIM,.020" Thk

1шт.

17

692533

BEARING ASSY

1шт.

18

86505654

SHAFT

1шт.

19

692537

BEARING ASSY,2.001" ID x 2.562" OD x 0.75"

1шт.

20

692544

COVER

1шт.

21

56513

PLUG,Hex Soc, 1/8" - 27 NPT

Pipe, Hex Socket, 1/8"-27 NPT

2шт.

22

88873

BUSHING

Hex, Serial Range: 3/4"-1/8"

1шт.

23

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

9шт.

24

492-11031

LOCK WASHER,5/16"

17шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

26

217-517

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.
