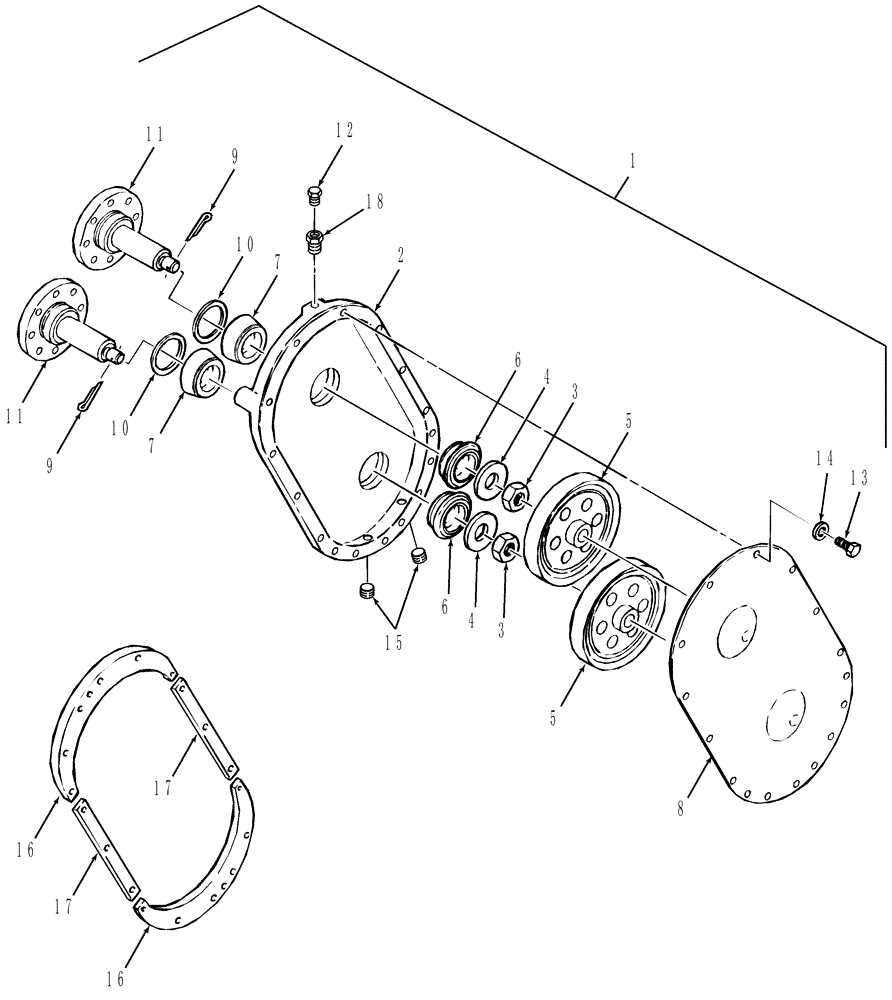

Запчасти Case IH DCX101 (58.100.03) - GEARBOX, CONDITIONER (58) - ATTACHMENTS/HEADERS

1

86602361

GEARBOX

Includes: Ref. 2 - 17

1шт.

1

86602361R

REMAN-TRANSMISSION

Reman Gearbox

1шт.

1

86602361C

CORE-TRANSMISSION

Return Number, Gearbox

1шт.

1

87567908

GEARBOX

Includes: Ref. 2 - 17

1шт.

1

87567908R

REMAN-GEARBOX

DCX101, Reman Gearbox

1шт.

1

87567908C

CORE-GEARBOX

Return Number

1шт.

2

9616628

HOUSING

Housing

1шт.

3

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

2шт.

4

56867

WASHER

2шт.

5

86602359

GEAR

Spur

2шт.

6

H433209

BEARING CUP

4шт.

7

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

4шт.

8

9847741

COVER

1шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

10

694956

SEAL

2шт.

11

9847669

SHAFT

2шт.

12

572820

BREATHER

1шт.

13

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

14

492-11031

LOCK WASHER,5/16"

16шт.

15

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

3шт.

16

86524355

STRIP-GASKET

Gasket

2шт.

17

86524354

STRIP-GASKET

Gasket

2шт.

18

221-87

REDUCER,1/2" NPT x 1/8" NPT

Bushing, Hex

1шт.
