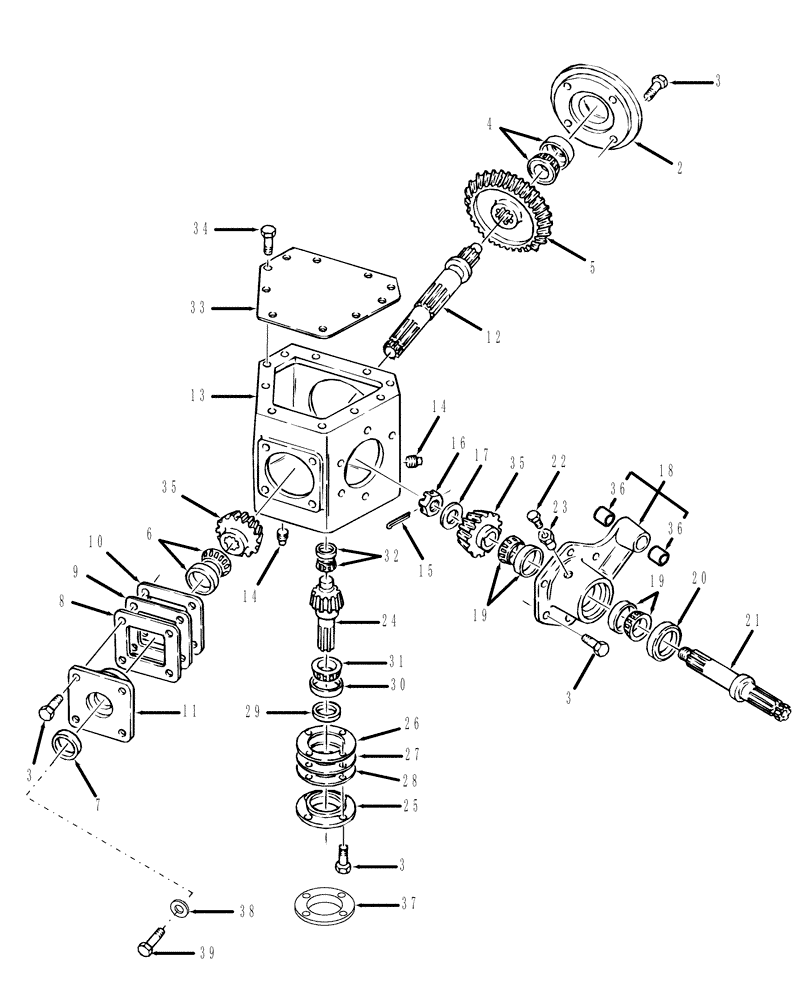

Запчасти Case IH DCX101 (58.100.02) - GEARBOX, BEVEL (58) - ATTACHMENTS/HEADERS

1

87054839

GEARBOX

Bevel; Includes: Ref. 2 - 37

1шт.

Prior To PIN HCA0006607

1шт.

1

87054839R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

87054839C

CORE-GEARBOX

Return Number GEARBOX

1шт.

1

87545091

FINAL DRIVE

FINAL REDUCTION GEARBOX Gearbox, Bevel; Includes: Ref. 2 - 37

1шт.

From PIN HCA0006607

1шт.

1

87545091R

REMAN-GEARBOX

Reman Gearbox, DCX101

1шт.

1

87545091C

CORE-GEARBOX

Return Number

1шт.

2

9860200

CAP

1шт.

3

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

18шт.

4

530740R91

BEARING ASSY,1.18775" ID x 2.5317" OD x 0.8478"

1шт.

5

9860129

BEVEL GEAR

54T- 23 Splines

1шт.

6

788854

BEARING SET,33.45mm ID x 69.04mm OD x 19.9mm W

Tapered

1шт.

7

634036

OIL SEAL

1шт.

8

86501593

SHIM

.002"

1шт.

9

86501594

SHIM

.010"

1шт.

10

86501595

SHIM

.003"

1шт.

11

9860202

CAP COVER

1шт.

12

86523142

SHAFT

Threaded hole in end. Component Of 87054839

1шт.

Prior To PIN HCA0006607

1шт.

12

87545107

SHAFT

Shaft; Component Of 87545091

1шт.

From PIN HCA0006607

1шт.

12

84264394

SHAFT

Shaft; Component Of 87545091, With Longer Splines, Start Year: 01-OCT-09

1шт.

13

87057324

GEARBOX

1шт.

14

217-517

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

2шт.

15

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

16

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

17

56867

WASHER

Hard, 3/4"

1шт.

18

9860198

BEARING HOUSING

Includes: Ref. 36

1шт.

19

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

2шт.

20

189602

SEAL,53.98mm ID x 76.38mm OD x 9.53mm Thk

1шт.

21

86501538

SHAFT

1шт.

22

572820

BREATHER

1шт.

23

221-87

REDUCER,1/2" NPT x 1/8" NPT

1шт.

24

9860130

SHAFT

18T

1шт.

25

86639720

CAP

1шт.

26

692306

SHIM,.002" Thk

1шт.

27

692307

SHIM,.003" Thk

1шт.

28

692308

SHIM,.010" Thk

1шт.

29

692326

SEAL,42mm ID x 60mm OD x 9mm Thk

1шт.

30

619387R1

BEARING CUP

Tapered, Roller

1шт.

31

G15215

ROLLER BEARING

Tapered, Roller

1шт.

32

86512016

BEARING ASSY,21.99mm ID x 45.24mm OD x 15.5mm W

Tapered, Roller

1шт.

33

86501239

COVER

1шт.

34

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

35

87036680

GEAR SET

24T

2шт.

36

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

2шт.

37

86639719

SHIELD

1шт.

Prior To PIN HCA0006166

1шт.

37

86577097

SHIELD

1шт.

Antiwrap component

1шт.

From PIN HCA0006166

1шт.

38

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

39

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.
