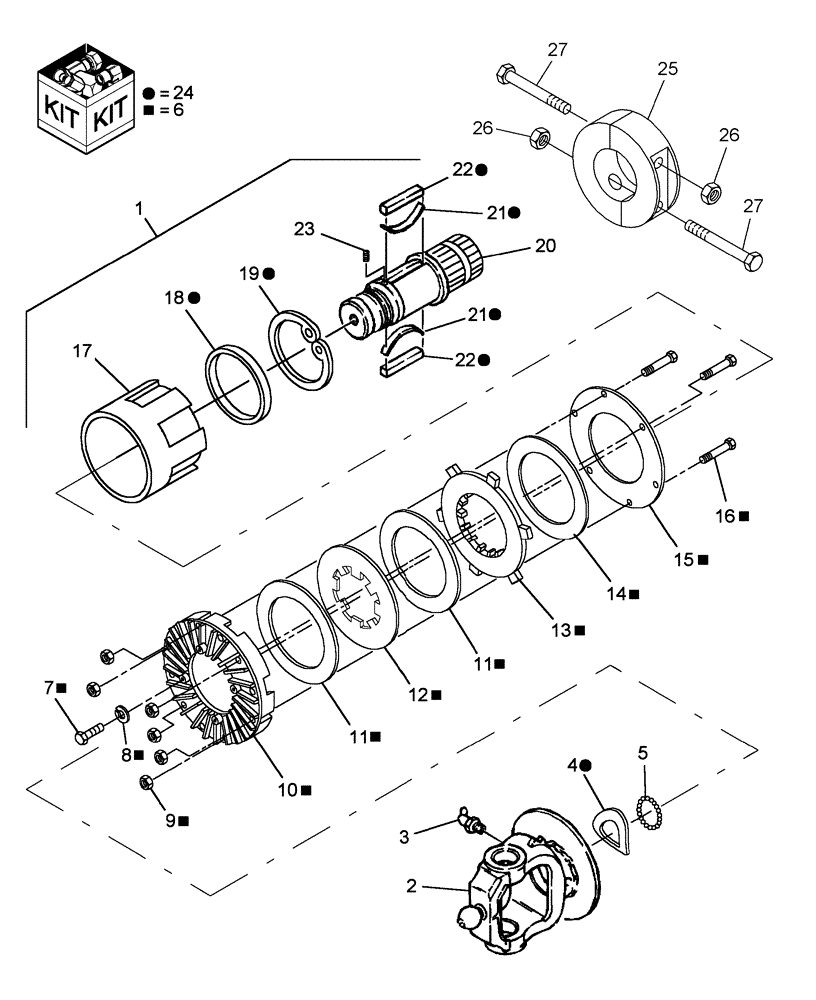

Запчасти Case IH DCX101 (58.100.01[03]) - CLUTCH, FRICTION OVERRIDING, PRIOR TO PIN HCA0006607 (58) - ATTACHMENTS/HEADERS

1

86603403

CLUTCH

Friction, Overrunning, Includes: Ref. 2 -23 & 25-27

1шт.

2

87527220

YOKE

& Plate, Includes: Ref. 3

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

NSS

NOT SOLD SEPARAT

Wave Spring

1шт.

5

86585468

BALL

1/4"

31шт.

6

86603636

CLUTCH

Friction Pack

1шт.

7

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

6шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

86539879

DISC

Friction

2шт.

12

86601371

CLUTCH PLATE

Separator

1шт.

13

NSS

NOT SOLD SEPARAT

Pressure Plate

1шт.

14

86559460

SPRING-DISC

1шт.

15

NSS

NOT SOLD SEPARAT

Compression Plate

1шт.

16

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

6шт.

17

86601370

HUB

Outer

1шт.

18

NSS

NOT SOLD SEPARAT

Washer

1шт.

19

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

20

86601426

HUB

Inner

1шт.

21

NSS

NOT SOLD SEPARAT

Leaf Spring

2шт.

22

NSS

NOT SOLD SEPARAT

Key

2шт.

23

86602307

SET SCREW,5/16" x 18mm

HS, Self-Locking, Cup Pt, G8, 5/16"-18

1шт.

24

86572966

REPAIR KIT

Overrunning Clutch

1шт.

25

86598607

HUB

Includes: Ref. 26 & 27

1шт.

26

232-4148

NUT,1/2"-13, GC

2шт.

27

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.
