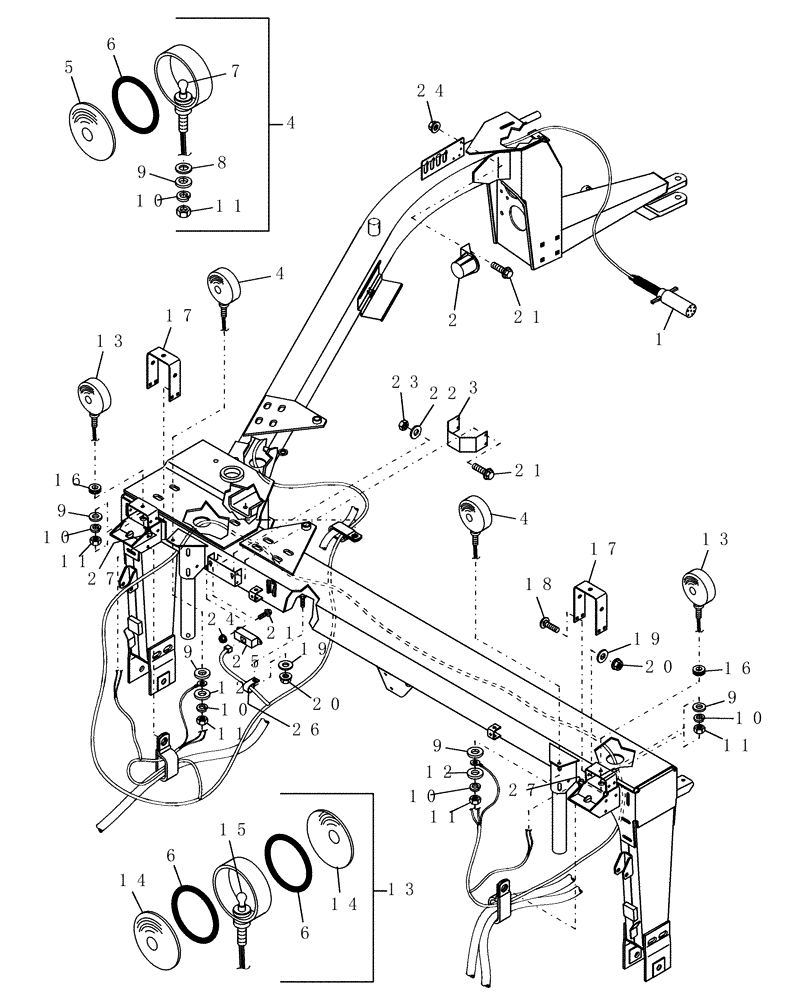

Запчасти Case IH DCX101 (55.795.01) - TRAIL FRAME ROUND LIGHTS (55) - ELECTRICAL SYSTEMS

1

86605903

WIRE HARNESS

Main

1шт.

2

9611467

HOLDER

1шт.

3

86567415

COVER

1шт.

4

86621619

WARNING LIGHT

Red

2шт.

5

86622241

LENS

Red

2шт.

6

86627435

O-RING,3.484" ID x 0.139" Width

1шт.

7

T34857

BULB,C6, #1157, 12.8V

2шт.

8

NSS

NOT SOLD SEPARAT

Gasket

2шт.

9

495-21056

WASHER,1/2"

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

425-118

NUT,1/2"-20, G5

2шт.

12

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

1/2"

2шт.

13

86624454

LAMP

Double Face, Includes: Ref's 3, 4, 5, 9 - 12

2шт.

14

86622240

LENS

Amber

2шт.

15

A41264

BULB,#1156, 12V

2шт.

16

138269

GROMMET

2шт.

17

86626282

BRACKET

2шт.

18

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

21

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

23

425-104

NUT,1/4"-20, Cl 5

4шт.

24

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

25

86561136

MODULE

Lighting

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

27

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.
