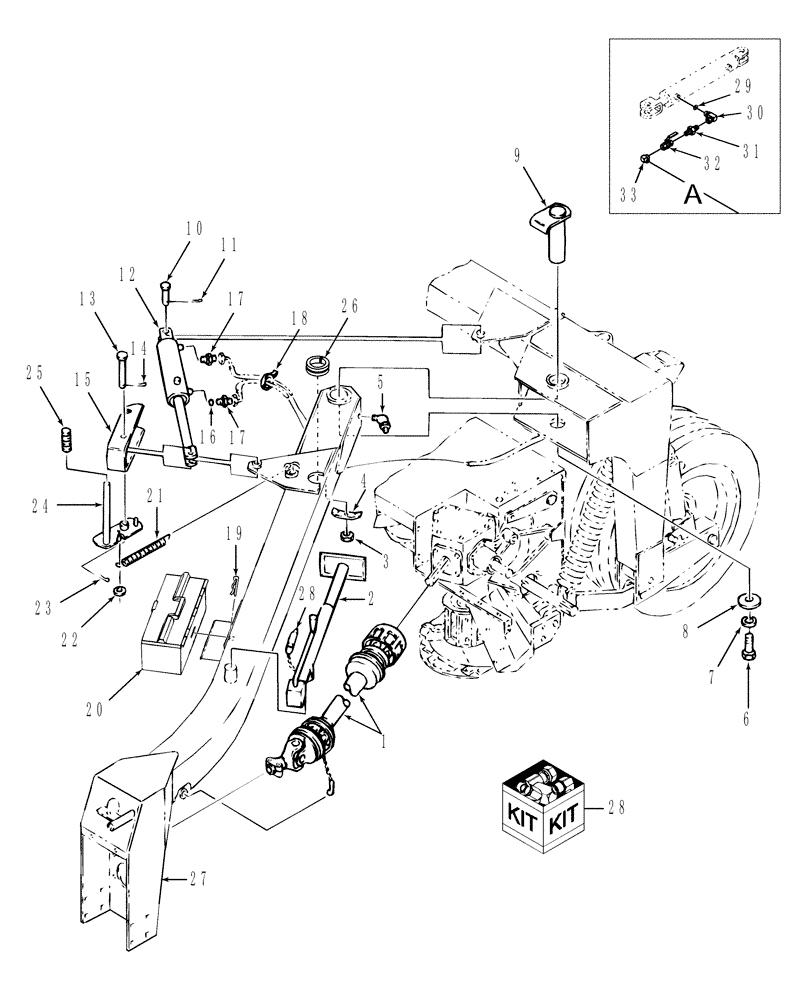

Запчасти Case IH DCX101 (39.110.02) - TONGUE, REAR (39) - FRAMES AND BALLASTING

1

0C

ORDER COMPONENTS

Secondary, Serial Range: Refer-Fig.31.201.06

1шт.

2

86617866

JACK

1шт.

3

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

4

9603461

CLAMP

1шт.

5

219-32

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1шт.

6

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

7

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

1шт.

8

86502976

WASHER

.78" ID x 3.75" OD x .25"

1шт.

9

86630513

PIN,69.85mm OD x 260mm L

1шт.

10

514864

PIN

1" x 3-1/8"

1шт.

11

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

12

86627217

HYDRAULIC CYLINDER

Refer to Fig. 35.100.03(01)

1шт.

Prior to PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

12

87018072

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 292.1mm Stroke

Monarch, Refer to Fig. 35.100.03(02)

1шт.

From PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

13

86515770

PIN

1шт.

Mechanical tongue lock component; prior to PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

14

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

15

86627849

LATCH ASSY.

1шт.

Mechanical tongue lock component; prior to PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

16

701811

ORIFICE

1шт.

17

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

18

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

19

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

1шт.

20

5135060

TOOL BOX

1шт.

21

143224

SPRING,Extension, 1" OD x 5-7/16" L

Extension

1шт.

Mechanical tongue lock component; prior to PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

22

495-21056

WASHER,1/2"

1шт.

Mechanical tongue lock component; prior to PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

23

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

24

86627218

BRACKET

1шт.

Mechanical tongue lock component; prior to PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

25

185350

HANDLE GRIP

1шт.

Mechanical tongue lock component; prior to PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

26

86604516

INSULATOR

3' -, Serial Range: Cut-Fit

1шт.

27

86630531

TONGUE

Rear

1шт.

28

86590810

KIT

Jack Chain & Pin

1шт.

29

701811

ORIFICE

1шт.

Hydraulic tongue lock component; from PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

30

80271642

ELBOW

1шт.

Hydraulic tongue lock component; from PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

31

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

Hydraulic tongue lock component; from PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

32

87041786

HYDRAULIC VALVE

1шт.

Hydraulic tongue lock component; from PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.

33

235131

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

Hydraulic tongue lock component; from PIN HCA0006499 (Rubber Rolls) Or HCA0006516 (Steel Rolls)

1шт.
