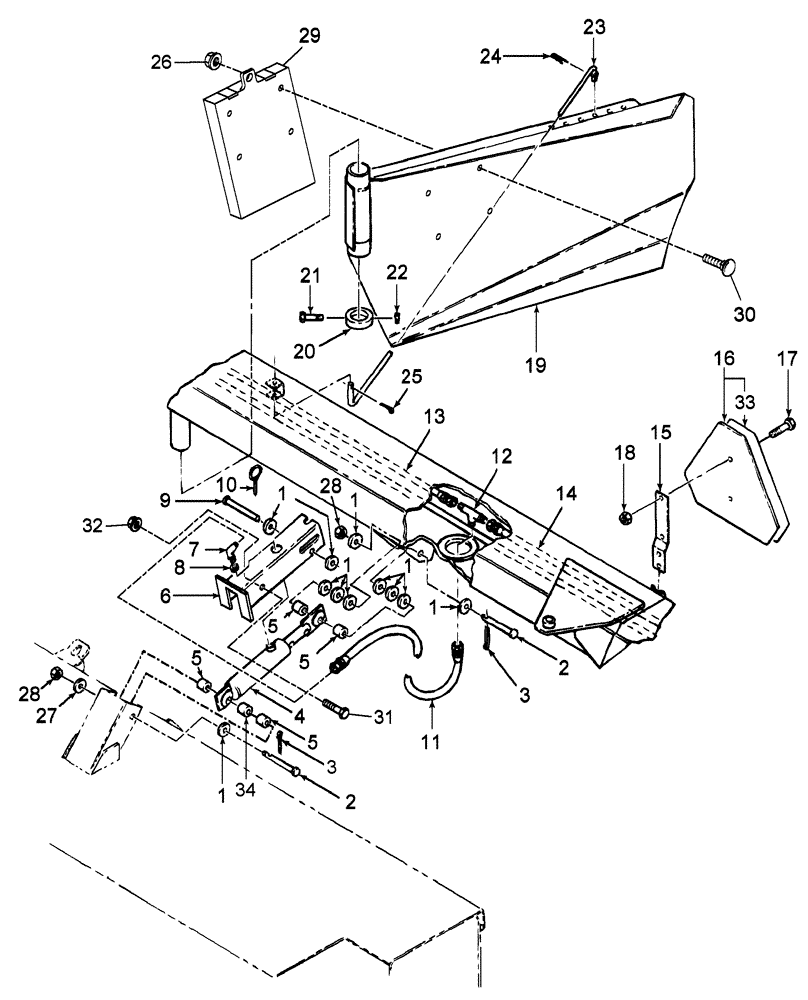

Запчасти Case IH DCX101 (39.100.03) - TRAIL FRAME, CENTER (39) - FRAMES AND BALLASTING

1

495-11081

WASHER,3/4", SAE

1шт.

2

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

3

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

4

86632808

HYDRAULIC CYLINDER

1шт.

87394809R

REMAN-HYD CYLINDER

DCX101 (10/01-7/08-), REMAN FOR NEW P/N 86632808

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Prior to PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

4

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Monarch, See Fig. 07.04

1шт.

87394809R

REMAN-HYD CYLINDER

DCX101 (10/01-7/08-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Cylinder head will protrude beyond end of barrel

1шт.

From PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

5

708554

HUB

1.05" / 1.11" L

4шт.

Prior to PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

5

86599380

SPACER

4шт.

From PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

6

86632809

CHANNEL

Cylinder

1шт.

Prior to PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

6

86627885

CHAMBER

Cylinder

1шт.

From PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

86510381

PIN

1шт.

10

270184

LINCH PIN,6.35mm OD

1шт.

11

176085

FLEXIBLE HOSE,9.53mm ID x 571.5mm L, SAE 100R1

1шт.

12

218-593

TEE,9/16"-18, 37 Degree

1шт.

13

86515766

FLEXIBLE HOSE,0.38" ID x 91.00", SAE 100R1

1шт.

14

86557715

FLEXIBLE HOSE,7112.00 mm x 9.52, SAE 100R1

1шт.

15

195035

SUPPORT

SMV Spade

1шт.

16

86547710

EMBLEM

KIT SMV

1шт.

17

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

18

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

19

86627018

SHIELD

RH

1шт.

19

86627020

SHIELD

LH

1шт.

20

86545693

COLLAR

2шт.

21

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

22

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

22

232-4146

NUT,3/8"-16, GC

2шт.

23

86506511

ADJUSTMENT ROD

2шт.

24

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

2шт.

25

394818

COTTER PIN,M5 x 25

2шт.

26

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

27

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

28

232-41412

LOCK NUT,3/4"-10, GC

2шт.

29

86613674

CASE

1шт.

30

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

31

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

32

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

33

86547711

DECAL,SMV

SMV

1шт.

34

87033961

BUSHING

2шт.

From PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.
