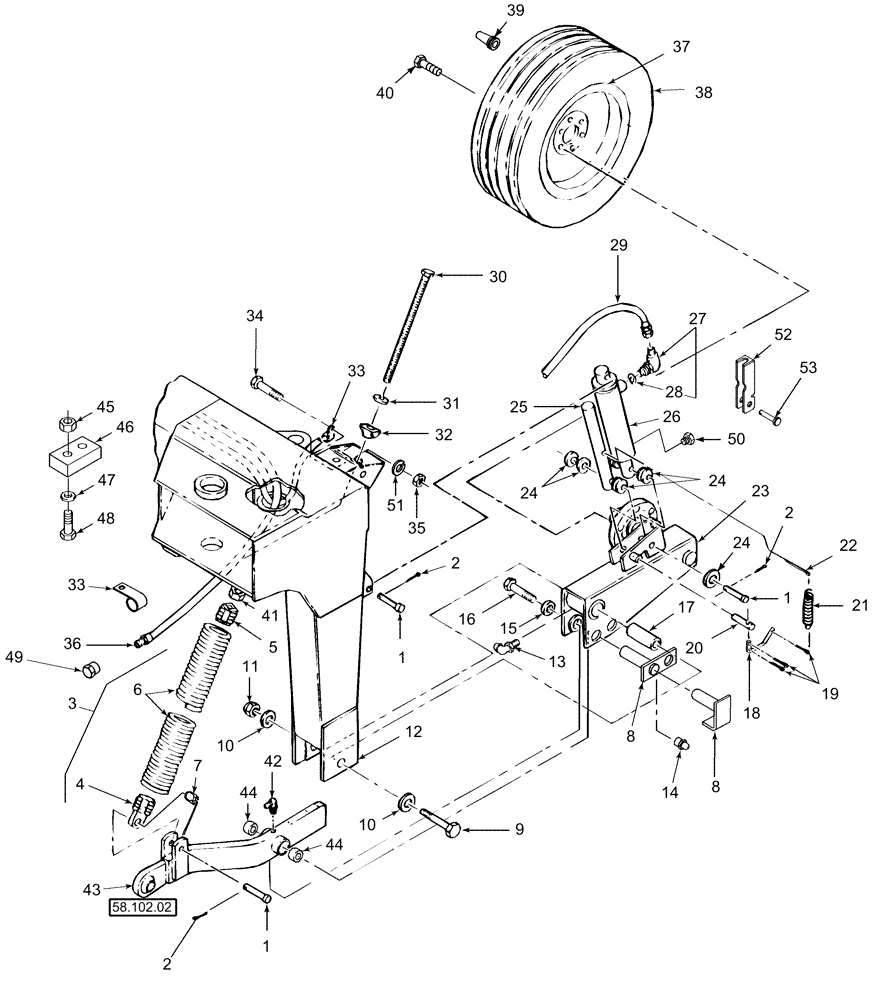

Запчасти Case IH DCX101 (39.100.01[02]) - TRAIL FRAME, LEFT SIDE (39) - FRAMES AND BALLASTING

1

86529064

PIN

2шт.

2

432-1624

COTTER PIN,1/4" x 1 1/2"

3шт.

3

9840706

SPRING

LH, Includes: Ref.'s 4 - 6

1шт.

4

9840707

SPRING NUT

1шт.

5

768970

SPRING NUT

1шт.

6

768968

SPRING

Extension

1шт.

7

36698

SPACER

1шт.

8

86506026

PIN,28.57mm OD x 140mm L

Rifle Drilled, Use With Ref. 14

1шт.

9

426-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

10

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

11

9626600

NUT,1"-8, GC

1шт.

12

87651263

FRAME

Trail

1шт.

12

86606609

FRAME

Trail, Start Serial: Y7B651575

1шт.

13

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

86516694

WASHER

1шт.

16

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

1шт.

16

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

1шт.

17

86632243

SPACER

120.0 / 120.5 mm L

1шт.

18

86631667

ROD

1шт.

18

87618910

LATCH

, Start Serial: Y7B651575

1шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

20

86546360

PIN

1шт.

21

86539129

SPRING

1шт.

22

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

23

0C

ORDER COMPONENTS

Spindle, LH, Refer to Fig. 11.01

1шт.

24

495-11066

WASHER,5/8", SAE

8шт.

25

86632240

ROD

1шт.

26

86627070

HYDRAULIC CYLINDER

Refer to Fig. 07.03(1)

1шт.

Prior to PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

26

87018039R

REMAN-HYD CYLINDER

DCX101 DISC MOWER CONDITIONER, Prior to PIN HCA0006156, steel rolls and HCA0006052, rubber rolls, LEFT SIDE (10/01-7/08), Reman for New PN 86627070

1шт.

26

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

26

87018039

HYDRAULIC CYLINDER,28.7mm Rod, 201.17mm Stroke

Monarch, Refer to Fig. 07.03(2)

1шт.

From PIN HCA0006156 (steel rolls) & HCA0006052 (rubber rolls)

1шт.

26

87018039R

REMAN-HYD CYLINDER

DCX101 DISC MOWER CONDITIONER, Monarch, From PIN HCA0006156, steel rolls and HCA0006052, rubber rolls (10/01-7/08)

1шт.

26

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

27

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 28

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

86515767

HYDRAULIC HOSE,0.38" ID x 166.00", SAE 100R1

1шт.

30

257460

BOLT,Hex, 5/8" - 11 x 17.12", Full Thd

1шт.

31

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

1шт.

32

694420

PIVOT

Spring

1шт.

33

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

34

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

35

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

36

86557715

FLEXIBLE HOSE,7112.00 mm x 9.52, SAE 100R1

1шт.

37

86621298

WHEEL

1шт.

38

PL

PROCURE LOCALLY

Tire, Rib Implement, 6 Ply, Tubeless, 11L x 15

1шт.

39

387897R91

VALVE STEM

1шт.

40

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

6шт.

41

425-1010

NUT,5/8"-11, G5

1шт.

42

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

43

86607955

LIFT ARM

LH, Includes: Ref. 44

1шт.

44

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

2шт.

45

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

46

86519305

BUMPER

1шт.

47

495-11053

WASHER,1/2", SAE

2шт.

48

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

49

116070

CAP

Oil Drain

1шт.

50

854071

BREATHER

1шт.

51

492-11031

LOCK WASHER,5/16"

1шт.

52

87618699

STOP

, Start Serial: Y7B651575

1шт.

53

87061043

PIN

, Start Serial: Y7B651575

1шт.
