(35.100.05[01]) - HYDRAULIC CYLINDER, TILT, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS)

Запчасти Case IH DCX101 (35.100.05[01]) - HYDRAULIC CYLINDER, TILT, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS) (35) - HYDRAULIC SYSTEMS

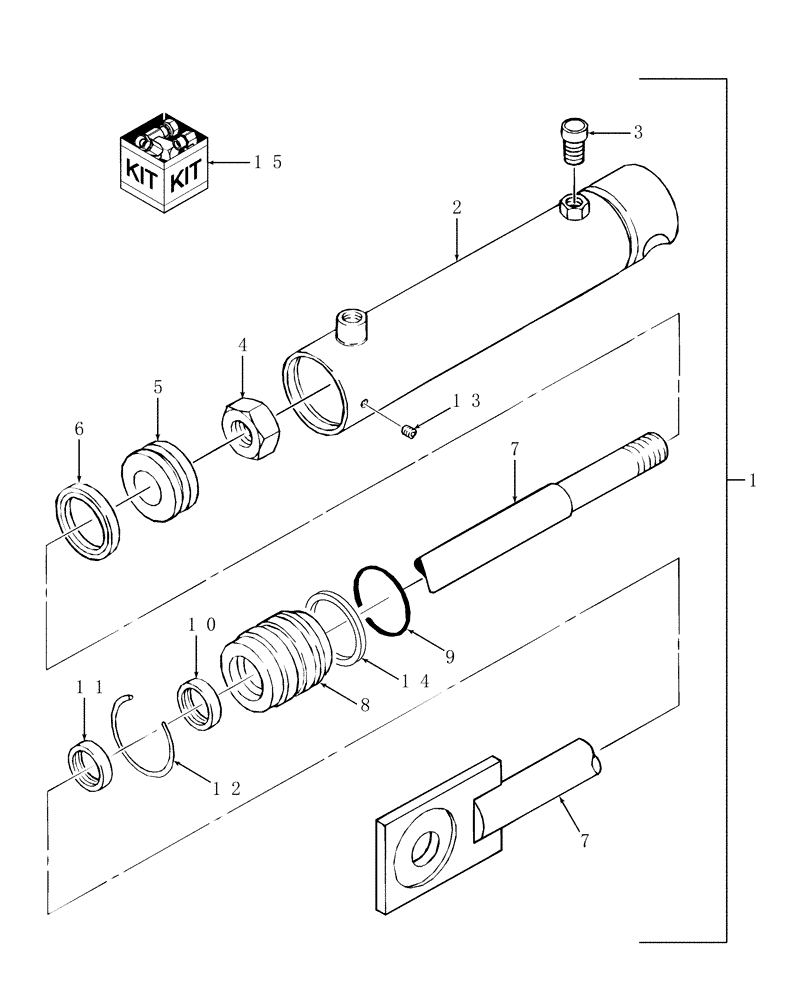

Схема запчастей Case IH DCX101 - (35.100.05[01]) - HYDRAULIC CYLINDER, TILT, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS) (35) - HYDRAULIC SYSTEMS
15
11
2
10
7
3
7
9
12
1
5
4
6
13
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86632808

HYDRAULIC CYLINDER

Tilt

1шт.

87394809R

REMAN-HYD CYLINDER

DCX101 PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS) (10/01-7/08-), REMAN FOR NEW P/N 86632808

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

46566

BREATHER

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86511585

PISTON

Includes: Ref. 6

1шт.

6

86553483

SEAL

3 Piece, Piston

1шт.

7

86535514

ROD

1шт.

8

785811

CYLINDER HEAD

1шт.

9

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

10

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

11

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

12

512016

SNAP RING

Int, 2.125"

1шт.

13

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

14

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

15

86511584

REPAIR KIT

Includes: Ref. 6, 9 - 12, & 14

1шт.
