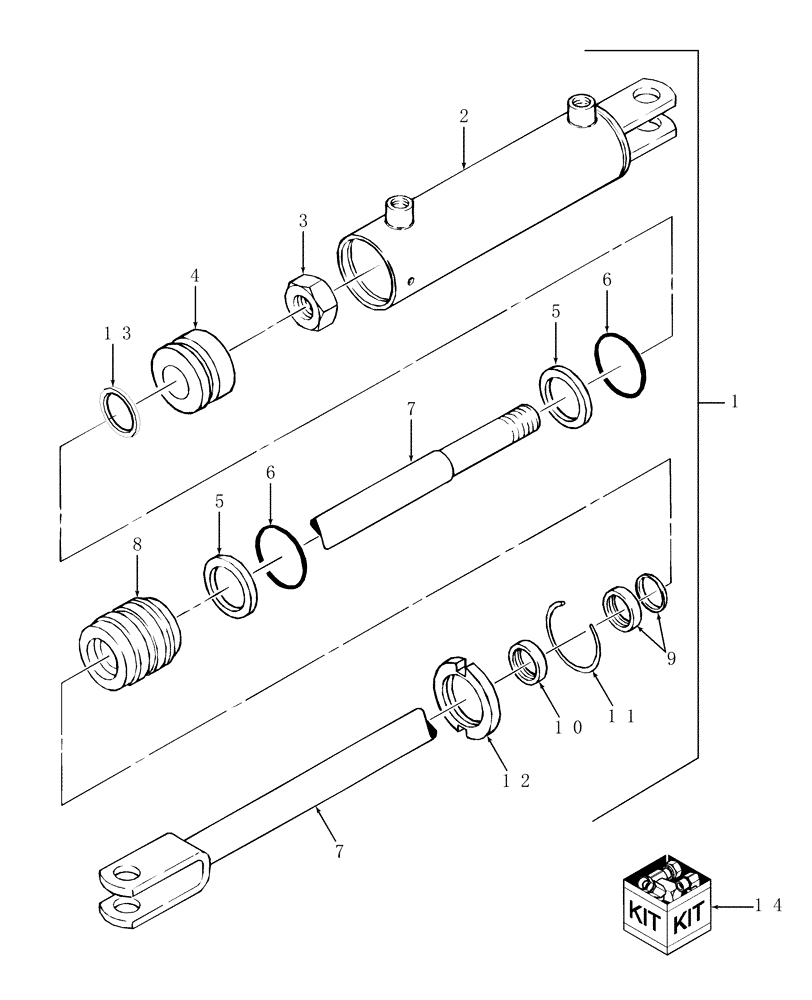

Запчасти Case IH DCX101 (35.100.03[01]) - HYDRAULIC CYLINDER, TONGUE, SWING, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLL (35) - HYDRAULIC SYSTEMS

1

86627217

HYDRAULIC CYLINDER

Includes: Ref. 2 - 13

1шт.

2

86508491

BARREL

1шт.

3

514101

LOCK NUT,Hex, 1" - 14

3/4" UNF

1шт.

4

770144

PISTON

1шт.

5

235784

WASHER,66.62mm ID x 76.43mm OD x 1.52mm Thk

Back-Up, 2.643" ID x .064" Thk

3шт.

6

238-5334

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2шт.

7

86521870

ROD

1шт.

8

593388

CYLINDER HEAD

Includes: Head & Ref. 5, 6, 9, & 10

1шт.

9

2978421

O-RING

1шт.

10

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

11

512015

SNAP RING

Int, 3.062"

1шт.

12

270177

BEARING LOCK NUT

2-3/4"-16

1шт.

13

86595542

SEAL

Piston

1шт.

14

86521862

SEAL KIT

Includes: (3) Ref. 5, (2) Ref. 6, (1) Ref. 9, 10, & 11

1шт.
