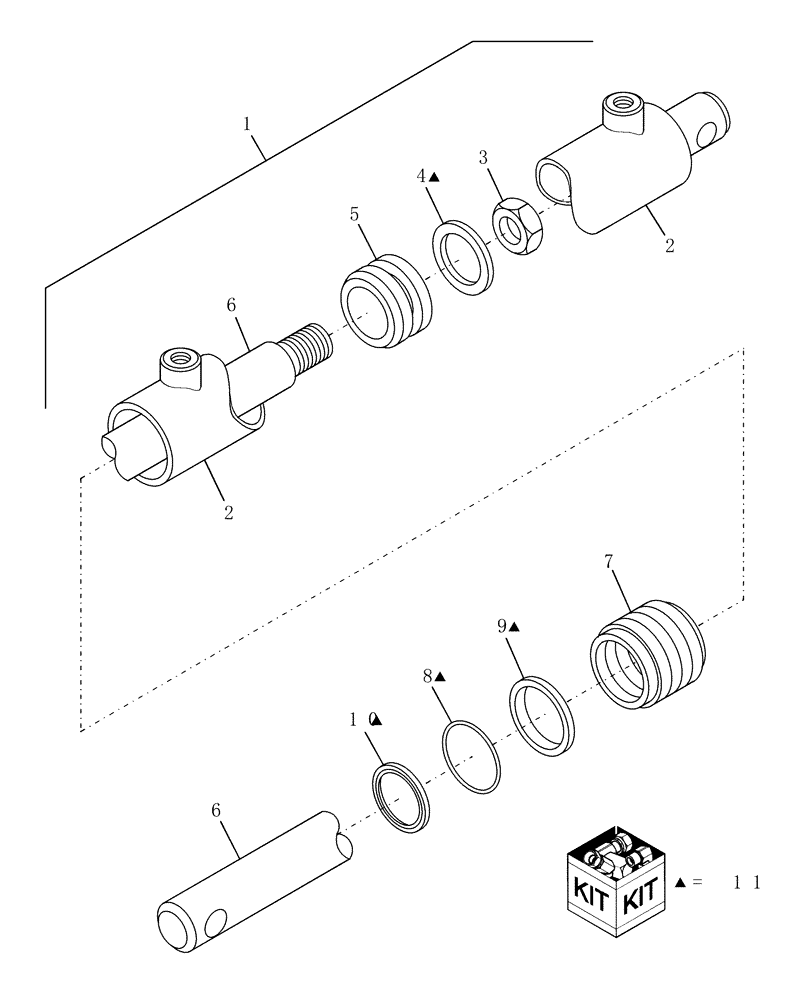

Запчасти Case IH DCX101 (35.100.01[04]) - HYDRAULIC CYLINDER, LIFT, SLAVE, MONARCH, FROM PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER R (35) - HYDRAULIC SYSTEMS

1

87018039

HYDRAULIC CYLINDER,28.7mm Rod, 201.17mm Stroke

Monarch, Lift, Slave

1шт.

1

87018039R

REMAN-HYD CYLINDER

DCX101 DISC MOWER CONDITIONER,Monarch, Lift, Slave, FROM PIN HCA0006156, STEEL ROLLS, OR HCA0006052, RUBBER R (10/01-7/08)

1шт.

1

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86553483

SEAL

3-Piece, Piston

1шт.

5

87026074

PISTON

1шт.

6

87026075

PISTON ROD

1шт.

7

87026073

HEAD

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

10

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

11

87025444

SEAL KIT

Kit

1шт.
