(35.100.01[03]) - HYDRAULIC CYLINDER, LIFT, SLAVE, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS)

Запчасти Case IH DCX101 (35.100.01[03]) - HYDRAULIC CYLINDER, LIFT, SLAVE, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS) (35) - HYDRAULIC SYSTEMS

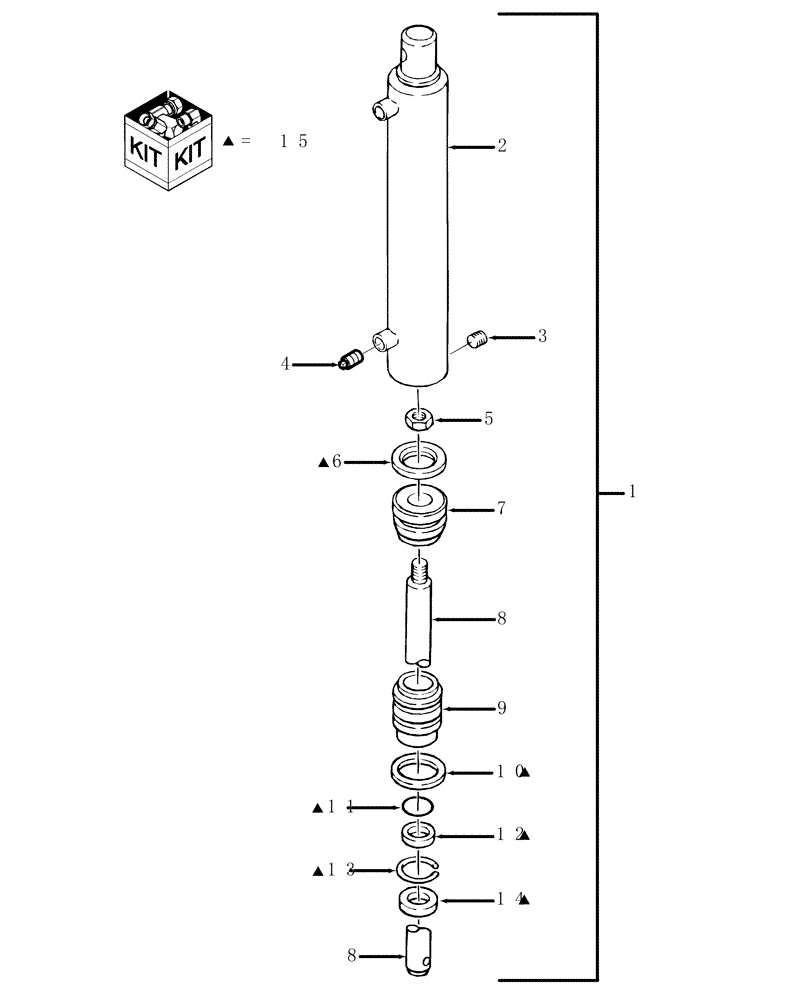

Схема запчастей Case IH DCX101 - (35.100.01[03]) - HYDRAULIC CYLINDER, LIFT, SLAVE, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS) (35) - HYDRAULIC SYSTEMS
9
2
5
8
8
1
10
4
11
14
12
13
3
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86627070

HYDRAULIC CYLINDER

Lift, Slave

1шт.

1

87018039R

REMAN-HYD CYLINDER

DCX101 DISC MOWER CONDITIONER, Lift, Slave, PRIOR TO PIN HCA0006156, STEEL ROLLS OR HCA0006052, RUBBER ROLLS (10/01-7/08), Reman for New PN 86627070

1шт.

1

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

4

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

771705

RING

Wear, 2.004" ID x .50" Thk

1шт.

7

80592950

PISTON

1шт.

8

591971

ROD

1шт.

9

86541098

CYLINDER HEAD

1шт.

10

771706

SEAL

1шт.

11

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

12

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

13

512016

SNAP RING

Int, 2.125"

1шт.

14

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

15

86539474

SEAL KIT

1шт.
