Запчасти Case IH DCX101 (35.100.01[02]) - HYDRAULIC CYLINDER, LIFT, MASTER, MONARCH, FROM PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER (35) - HYDRAULIC SYSTEMS

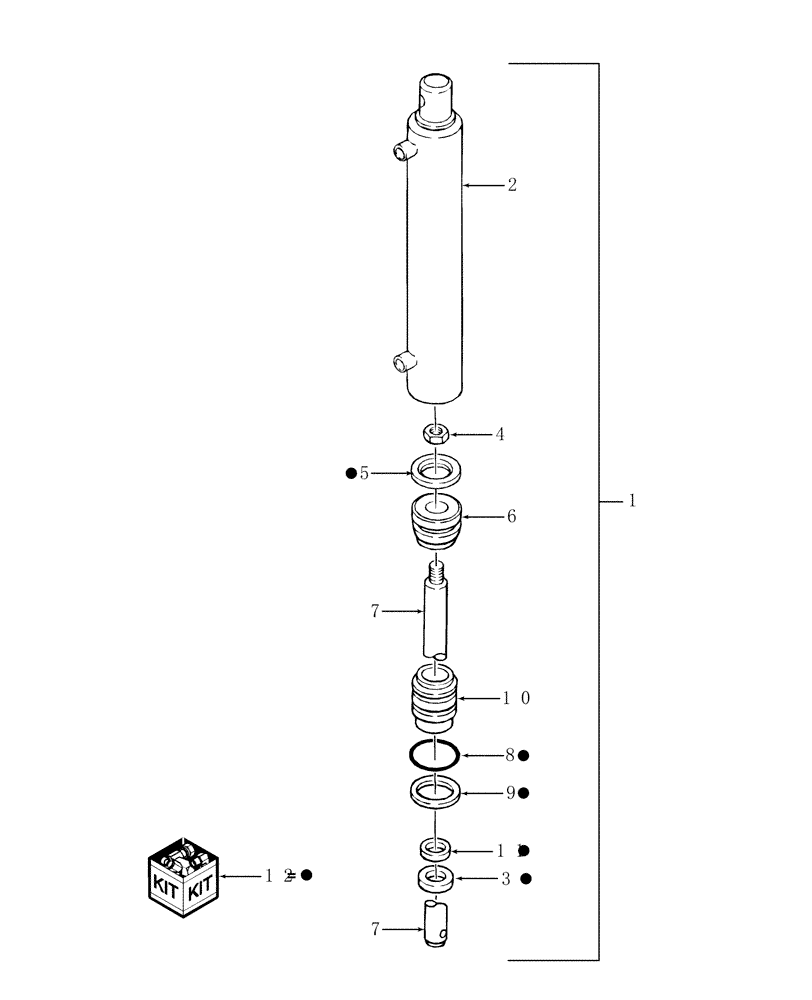

Схема запчастей Case IH DCX101 - (35.100.01[02]) - HYDRAULIC CYLINDER, LIFT, MASTER, MONARCH, FROM PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER (35) - HYDRAULIC SYSTEMS
10
9
7
1
5
8
4
12
2
3
6
11
7

Артикул

Название

Примечание

Количество

1

87018066

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 203.2mm Stroke

Hydraulic, Lift, Master

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86557272

SEAL

1шт.

6

87027473

PISTON

1шт.

7

87027476

PISTON ROD

1шт.

8

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

Polyurethane

1шт.

9

9603673

WASHER

Back-Up

1шт.

10

87027469

HEAD

1шт.

11

592955

FUSE

1шт.

12

87027481

SEAL KIT

Includes 3, 5, 8, 9, & 11

1шт.

Выбрано товаров: 12
