(35.100.01[01]) - HYDRAULIC CYLINDER, LIFT, MASTER, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS)

Запчасти Case IH DCX101 (35.100.01[01]) - HYDRAULIC CYLINDER, LIFT, MASTER, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS) (35) - HYDRAULIC SYSTEMS

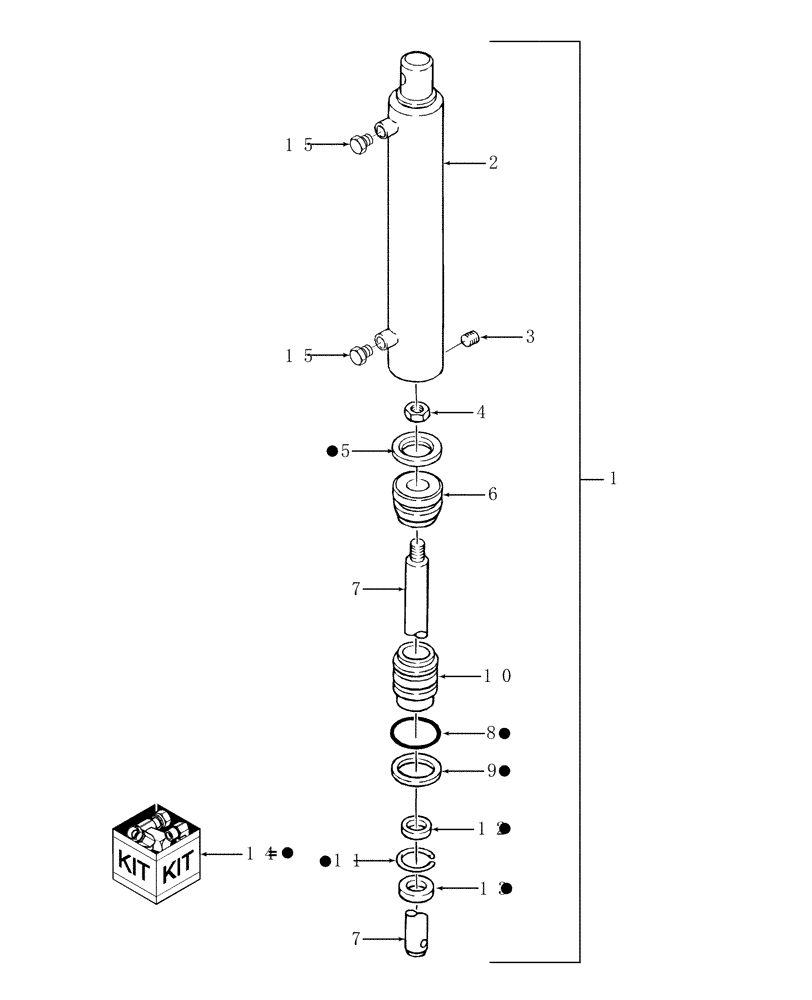

Схема запчастей Case IH DCX101 - (35.100.01[01]) - HYDRAULIC CYLINDER, LIFT, MASTER, PRIOR TO PIN HCA0006156 (STEEL ROLLS) OR HCA0006052 (RUBBER ROLLS) (35) - HYDRAULIC SYSTEMS
9
14
3
5
13
12
8
15
2
15
4
7
10
6
11
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86632811

DAMPER

Lift, Master

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86557272

SEAL

1шт.

6

787319

PISTON

1шт.

7

591986

ROD

1шт.

8

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

Polyurethane

1шт.

9

235785

BACK-UP RING,54.05mm ID x 63.6mm OD x 1.63mm Thk

Back-Up, 2.138" ID x .064" Thk

1шт.

10

9622051

CYLINDER HEAD

1шт.

11

517561

SNAP RING

Int, 2.625"

1шт.

12

2978421

O-RING

1шт.

13

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

14

792803

SEAL KIT

1шт.

15

76349

PLUG,9/16" - 18 ORB

2шт.
