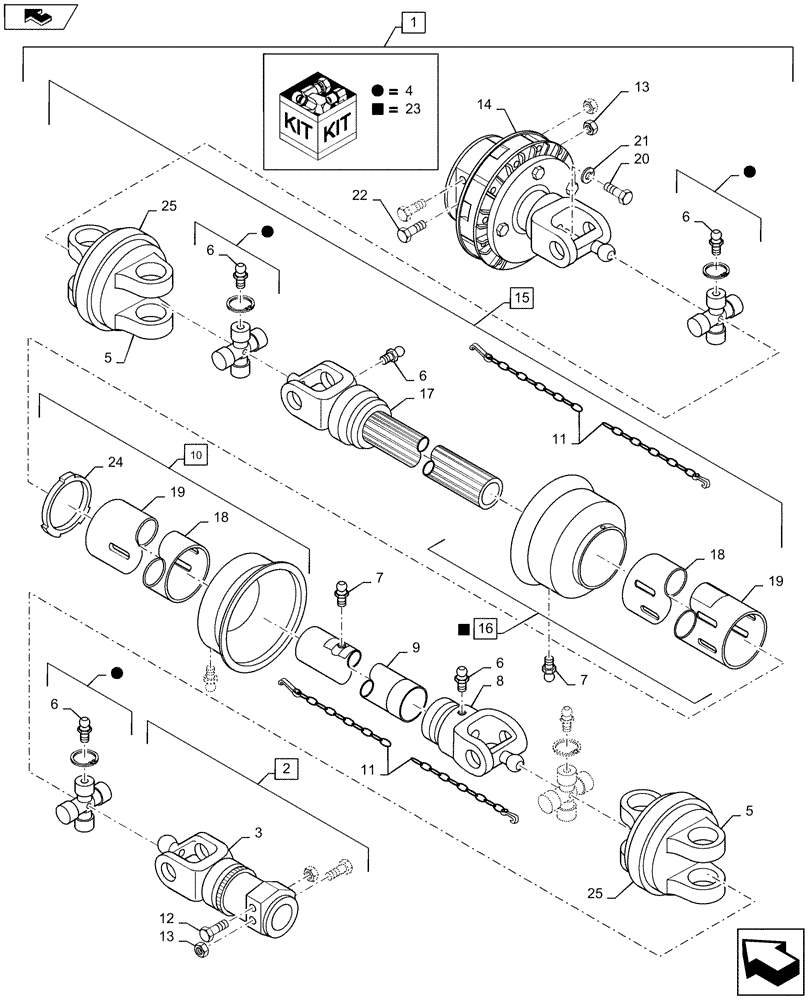

Запчасти Case IH DCX101 (31.201.06[03]) - SECONDARY PTO W/FRICTION OVERRIDING CLUTCH, PRIOR TO PIN HCA0006607 (31) - IMPLEMENT POWER TAKE OFF

1

0C

ORDER COMPONENTS

PTO, Secondary, W/ Overriding Clutch

1шт.

Includes: (2 - 22)

1шт.

2

86551676

PTO

Front Half, Includes: Ref. 3 - 13; Metal Guard

1шт.

2

87042996

PTO

Front Half; Includes: Ref. 3 - 10, 12, & 13; Plastic Guard

1шт.

3

86520878

YOKE

1шт.

4

86520873

BEARING ASSY

4шт.

5

86520874

UNIVERSAL JOINT

Center

2шт.

Uses Cross Kit 86520873

1шт.

6

88775

LUBE NIPPLE,1/4"-28

6шт.

7

86542773

LUBE NIPPLE

Press Fit

2шт.

8

86557659

YOKE

& Tube - Includes: Ref. 7 & 9

1шт.

9

849472

DANGER DECAL

Shield Missing - English

1шт.

9

849483

DANGER DECAL

Shield Missing - French

1шт.

10

86557658

GUARD

Inner, Includes: Centralizer

1шт.

Metal

1шт.

See Also: Ref. 23

1шт.

10

87043000

GUARD

Set; Includes: Inner & Outer Guards, Ref. 18 & 19

1шт.

Plastic

1шт.

See Also: Ref. 23

1шт.

11

379650

CHAIN

2шт.

12

280820

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

2шт.

13

232-4148

NUT,1/2"-13, GC

4шт.

14

86603403

CLUTCH

1шт.

Refer to Fig.58.100.01(03)

1шт.

15

86603405

PTO

Rear Half, Includes: Ref. 4 - 7, 11, 13, 14, 16 - 19 & 22; Metal Shield

1шт.

15

87042997

PTO

Rear Half, Includeds: Ref. 4 - 7, 13, 14, 16 - 19 & 22; Plastic Shield

1шт.

16

86557657

GUARD

Outer - Includes: Ref. 18, & 19

1шт.

Metal

1шт.

See Also: Ref. 23

1шт.

16

87043000

GUARD

Set; Includes: Inner & Outer Guards, Ref. 18 & 19

1шт.

Plastic

1шт.

See Also: Ref. 23

1шт.

17

86557656

YOKE

& Shaft

1шт.

18

849471

DANGER DECAL

Rotating Driveline - English

1шт.

18

849482

DANGER DECAL

Rotating Driveline, French

1шт.

18

9801260

DANGER DECAL

DANGER, Spanish

1шт.

19

86566602

IDEOGRAM

Lubrication, Grease 8 Places - English

1шт.

19

86568228

DECAL

Lubrication, Grease 8 Places - French

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

22

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

23

86564304

REPAIR KIT

Shield

1шт.

Includes: Chain, Bearing w/Groove, Tube of Lube, Bearing Retainer

1шт.

Used Only W/Metal Shields

1шт.

23

87039062

REPAIR KIT

Easy Lock

1шт.

Used Only W/Plastic Shields

1шт.

24

86564303

RING

1шт.

Used Only W/Metal Shields

1шт.

25

86520893

HOUSING

2шт.

Uses Cross Kit 86551252

1шт.
