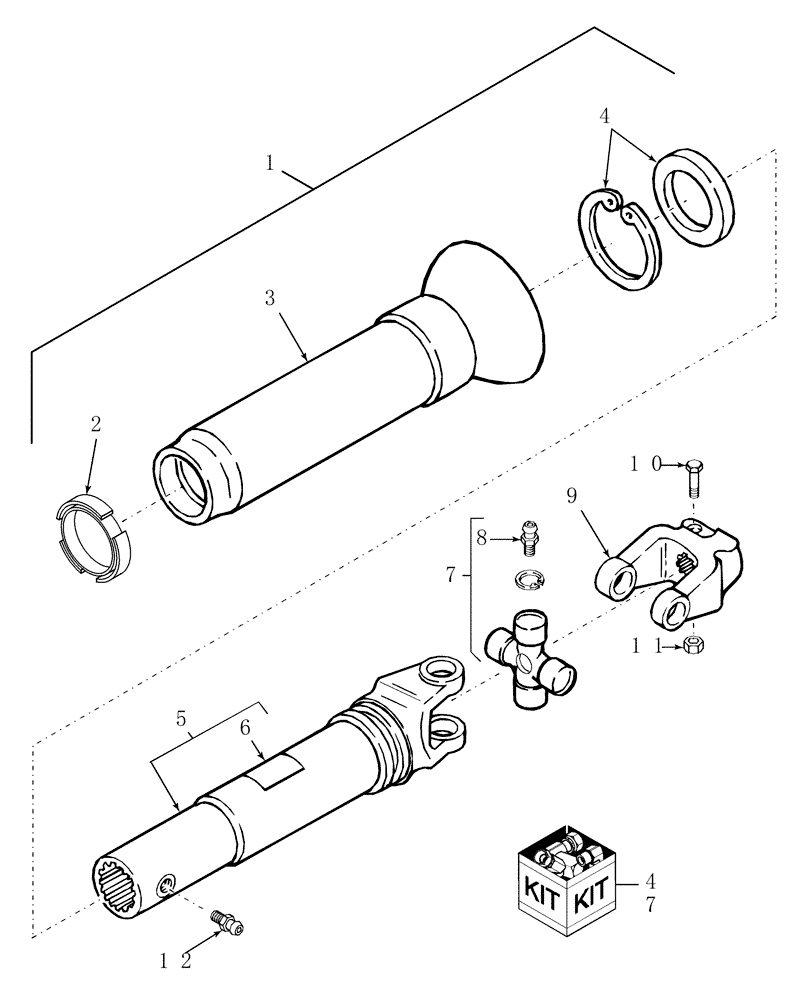

Запчасти Case IH DCX101 (31.201.05[01]) - PRIMARY PTO, REAR HALF, 540 RPM, PRIOR TO 05/07 (31) - IMPLEMENT POWER TAKE OFF

1

86621888

REAR PTO ASSY

Includes: Ref. 2 - 9; Metal Shield

1шт.

1

87043016

REAR PTO ASSY

Includes: Ref. 3 - 9; Plastic Shield

1шт.

2

86575864

RING

1шт.

Used Only W/Metal Shields

1шт.

3

86621889

GUARD

Inner, Includes: Ref. 2 & 4

1шт.

Metal

1шт.

3

87039063

OUTER SHIELD

Set; Includes: Ref. 4 & Outer Guard Assy from Fig. 31.146.04(02)

1шт.

Plastic

1шт.

4

86505713

NYLON BEARING

Nylon

1шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

5

86593853

YOKE

& Tube

1шт.

6

849472

DANGER DECAL

Safety

1шт.

7

86520896

BEARING ASSY

Cross & Bearing

1шт.

8

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

9

86520897

YOKE

1шт.

10

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

11

232-4148

NUT,1/2"-13, GC

1шт.

12

86542773

LUBE NIPPLE

Short

1шт.
