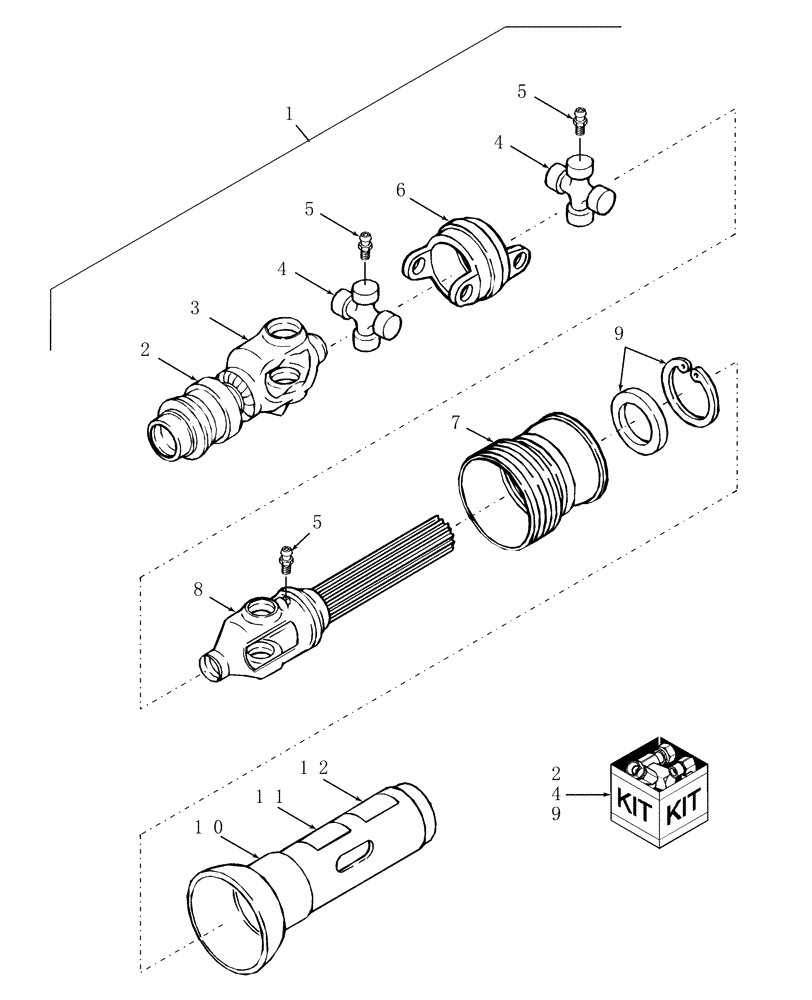

Запчасти Case IH DCX101 (31.201.04[03]) - PRIMARY PTO, FRONT HALF, 1000 RPM (31) - IMPLEMENT POWER TAKE OFF

1

86534540

FRONT PTO ASSY

Half, 1-3/8"-21 Spline, Includes: Ref. 2 - 12; Metal Shield

1шт.

1

87039058

FRONT PTO ASSY

Half, 1-3/8"-21 Spline, Includes: Ref. 2 - 12; Plastic Shield

1шт.

2

86534533

REPAIR KIT

Auto Lock, 1-3/8"

1шт.

Includes: [1] Retaining Ring, [1] Collar, [1] Spring, [2] Pawls, [4] Balls & Instructions

1шт.

2

86539714

REPAIR KIT

Auto Lock, 1-3/4"

1шт.

Includes: [1] Retaining Ring, [1] Collar, [1] Spring, [2] Pawls, [4] Balls & Instructions

1шт.

3

86534536

YOKE

Auto Lock, 1-3/8"-21 Spline

1шт.

3

86526268

YOKE

Auto Lock, 1-3/8"-6T Spline, Australia Only

1шт.

3

86533312

YOKE

Auto Lock, 1-3/4"-20T Spline

1шт.

4

86520900

BEARING ASSY

Cross & Bearing Includes: Ref. 5

2шт.

5

88775

LUBE NIPPLE,1/4"-28

3шт.

6

86526270

HOUSING

CV Center

1шт.

7

86510902

SHIELD

W/Nylon Centralizer

1шт.

Used Only W/Metal Shields

1шт.

7

NSS

NOT SOLD SEPARAT

W/Nylon Centralizer; See Ref. 10

1шт.

Used Only W/Plastic Shields

1шт.

8

86520901

YOKE

& Shaft

1шт.

9

86520902

REPAIR KIT

Shield

1шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

Used Only W/Metal Shields

1шт.

9

87039056

REPAIR KIT

Shield

1шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

Used Only W/Plastic Shields

1шт.

10

86510903

OUTER SHIELD

Includes: Ref. 7, 11, & 12

1шт.

Metal

1шт.

10

87039057

GUARD

Set; Includes: Ref. 7, 11, 12, & Inner Guard Assy On Fig. 01.04

1шт.

Plastic

1шт.

11

849471

DANGER DECAL

Safety

1шт.

11

849482

DANGER DECAL

French

1шт.

11

9801260

DANGER DECAL

DANGER - Spanish

1шт.

12

86520249

DECAL

Lubrication

1шт.
