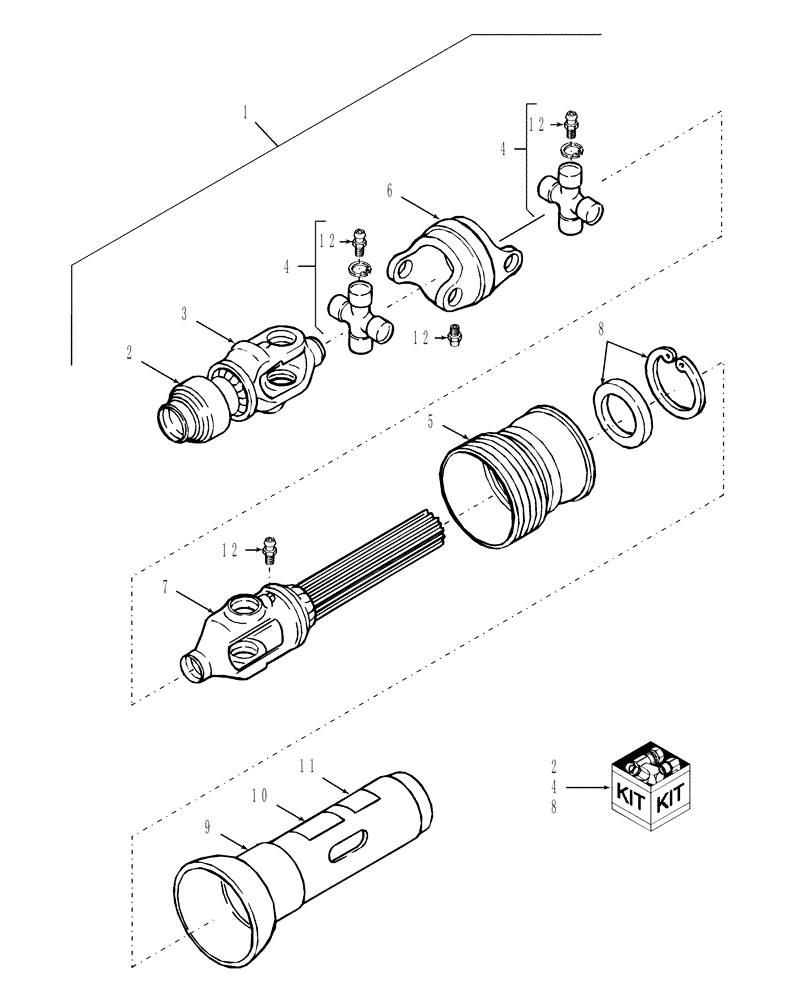

Запчасти Case IH DCX101 (31.201.04[01]) - PRIMARY PTO, FRONT HALF, 540 RPM, PRIOR TO 5/07 (31) - IMPLEMENT POWER TAKE OFF

1

86593842

FRONT PTO ASSY

Includes: Ref. 2 - 12; Metal Shield

1шт.

1

87039064

FRONT PTO ASSY

Includes: Ref. 2 - 12; Plastic Shield

1шт.

2

86534533

REPAIR KIT

Lock; Includes: (1) Coil Spring, (1) Collar (2) Pawl, Old Design, (2) Pawl, New Design (1) Retaining Ring & Instructions

1шт.

3

86534534

YOKE

Auto Lock

1шт.

4

86551252

SPIDER

Cross & Bearing, Snap Rings NSS

2шт.

5

86510899

SHIELD

Extension, W/Nylon Centralizer

1шт.

Used Only W/Metal Shields

1шт.

5

NSS

NOT SOLD SEPARAT

Extension, W/Nylon Centralizer

1шт.

Used Only W/Plastic Shields

1шт.

6

86520893

HOUSING

CV Center

1шт.

7

86593839

YOKE

& Shaft

1шт.

8

86505713

NYLON BEARING

Nylon Bearing Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

Used Only W/Metal Shields

1шт.

8

87050379

REPAIR KIT

Nylon Bearing Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

Used Only W/Plastic Shields

1шт.

9

86593840

OUTER SHIELD

Includes Ref. 5, 8, 10, & 11

1шт.

Metal

1шт.

9

87039063

OUTER SHIELD

Set, Guard; Includes: Ref. 5, 8, 10, 11, & Inner Guard Assy, Fig. 01.02

1шт.

Plastic

1шт.

10

849471

DANGER DECAL

Safety

1шт.

10

849482

DANGER DECAL

French

1шт.

10

9801260

DANGER DECAL

DANGER - Spanish

1шт.

11

86520249

DECAL

Lubrication

1шт.

12

88775

LUBE NIPPLE,1/4"-28

4шт.
