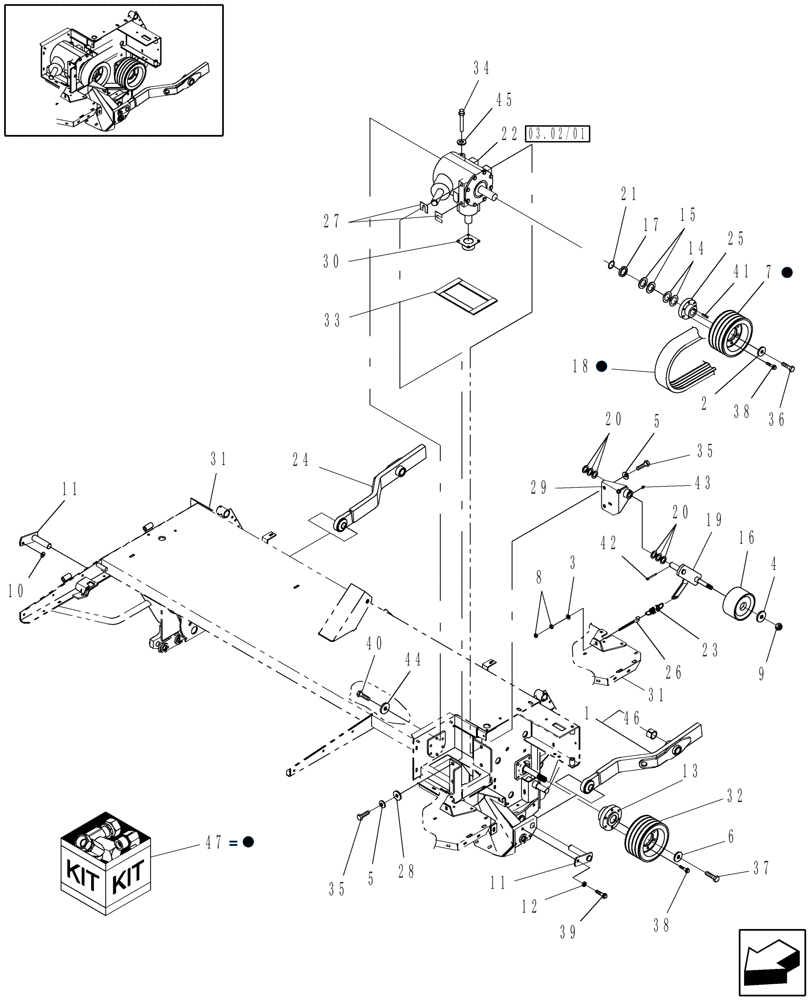

Запчасти Case IH DC92F (15.03/03) - HEADER DRIVE (15) - CROP CONDITIONING

1

86607957

LIFT ARM

Includes Ref. 46

1шт.

2

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

1шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

4

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

(20 mm)

1шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

6

86516694

WASHER

1шт.

7

86633564

PULLEY

247.7mm OD

1шт.

7

86538651

PULLEY

177.8mm OD, Part of Low Speed Kit, See Ref 18 & 47

1шт.

8

9628503

NUT,3/8"-16, G5

2шт.

9

280375

NUT,3/4"-10, GC

1шт.

10

39856

WASHER,13.49mm ID x 38.1mm OD x 6.35mm Thk

1/2"

1шт.

11

86506026

PIN,28.57mm OD x 140mm L

2шт.

12

167381

SPACER

2шт.

13

86540089

HUB

1шт.

14

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

2/ARшт.

15

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

2/ARшт.

16

771623

IDLER

1шт.

17

86510186

SPACER

1шт.

18

9601139

V-BELT,16.76 mm W x 1867.00 mm W, 4 Ribs

4HB

1шт.

18

86627809

V-BELT,0.66" W x 68.50" L, 4 Ribs

Part of Low Speed Kit, See Ref 7 & 47

1шт.

19

86634084

PIVOTING ARM

1шт.

20

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

6/ARшт.

21

626286

SNAP RING

1шт.

22

87025403

GEARBOX ASSY

Bevel, 540 RPM

1шт.

22

87025403R

REMAN-GEARBOX

Reman Gearbox, DC92F 11/08

1шт.

22

87025403C

CORE-GEARBOX

Return Number

1шт.

23

87054556

TENSION SPRING

1шт.

24

87030998

ARM ASSY.

Lift, RH, Includes Ref. 46

1шт.

25

87032915

HUB ASSY.

1шт.

26

631201

EYEBOLT

1шт.

27

66271

SHIM,.036" Thk

2/ARшт.

28

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

1шт.

29

87030339

BRACKET

1шт.

30

87035616

SHIELD

1шт.

31

87029950

HEAD ASSY.

1шт.

32

86538651

PULLEY

177.8mm OD

1шт.

33

87058748

SEAL

1шт.

34

87051580

DIPSTICK

1шт.

35

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

36

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

1шт.

37

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

38

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

39

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

40

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

41

87485

KEY,50.8mm OAL x 7.96mmThk

5/16" Sq x 2", Shaft

1шт.

42

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

43

87414

LUBE NIPPLE,1/4" - 28

1шт.

44

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

45

87054108

WASHER,17.16mm ID x 22mm OD x 1mm Thk

1шт.

46

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

2шт.

47

86538996

KIT

Low Speed Rotor, Includes Ref 7 & 18, As Indicated

1шт.
