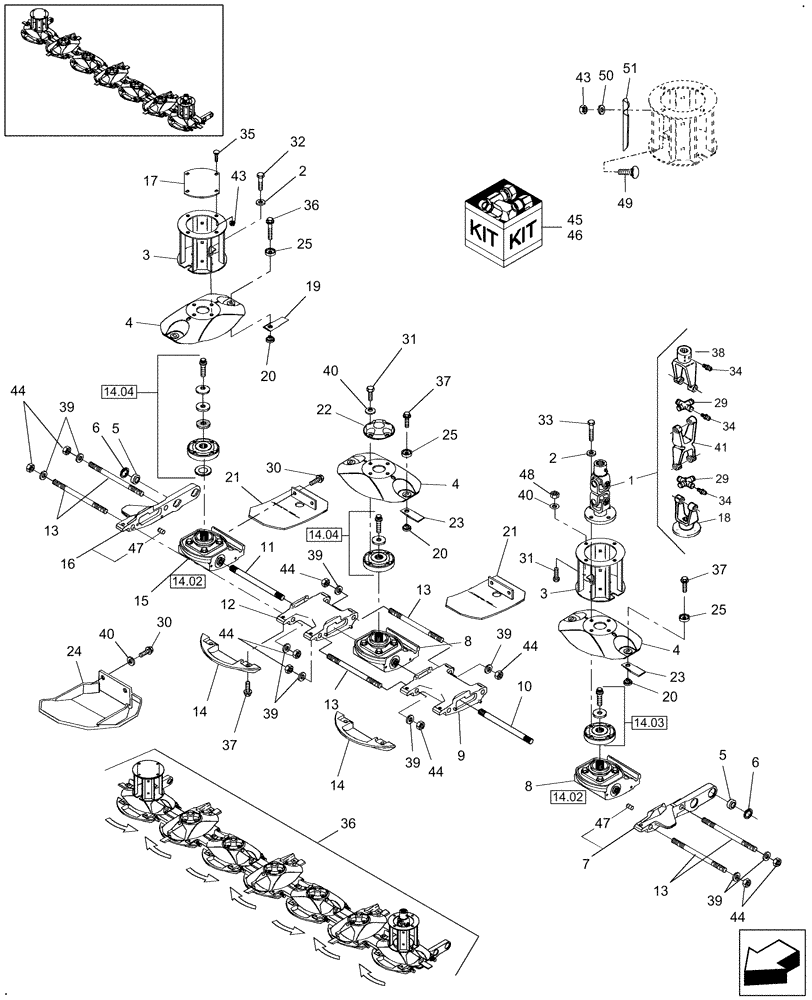

Запчасти Case IH DC92F (14.01/01) - CUTTERBAR (14) - CROP CUTTING

1

87027235

PTO

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

8шт.

3

87040772

DRUM

2шт.

4

87646406

DISC

7шт.

4

87528245

KIT

CW Crop Lifter

3шт.

4

87528249

KIT

CCW Crop Lifter

4шт.

5

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

6

271429

SNAP RING,1.625", Int, #162

4шт.

7

86640565

ARM

LH

1шт.

8

0C

ORDER COMPONENTS

CW Module

4шт.

9

87044109

SPACER

Long, Includes Ref. 47

1шт.

10

86519039

SHAFT

268mm

1шт.

11

86519042

SHAFT

248mm

5шт.

12

87044107

SPACER

Includes Ref. 47

5шт.

13

86501934

THREADED ROD

14шт.

14

87047845

STONEGUARD

7шт.

15

0C

ORDER COMPONENTS

CCW Module

3шт.

16

86631408

ARM

RH, Includes Ref. 47

1шт.

17

86631895

COVER

1шт.

18

86585339

YOKE

1шт.

19

86621873

BLADE

CCW, 14° Twist, Standard Equipment

1шт.

19

9847684

BLADE,Knife CCW

CCW, 7° Twist

1шт.

19

87029588

BLADE

CCW, 14° Twist, Over-serrated

1шт.

19

86532078

KNIFE

V

1шт.

20

87725066

NUT

14шт.

21

87047426

SKID/SHOE

7шт.

21

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

7шт.

22

87581143

CAP

See Fig. 14.03

5шт.

23

86621872

BLADE

CW, 14° Twist, Standard Equipment

8шт.

23

9847683

BLADE,Knife CW

CW, 7° Twist

8шт.

23

87029587

BLADE

CW, 14° Twist, Over-serrated

8шт.

23

86532078

KNIFE

V

8шт.

24

87622885

SHOE

High Stub

1шт.

25

86510384

CAP

14шт.

26

87560472

HUB ASSY.

Standard

1шт.

27

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

7шт.

28

87584169

BOLT,5/8" - 11 x 1-1/2"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 1/2", Locking Patch

1шт.

29

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

2шт.

30

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

14шт.

31

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

36шт.

32

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

33

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

34

87414

LUBE NIPPLE,1/4" - 28

For Ref 38

1шт.

34

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

For Ref 29

2шт.

35

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

36

87648076

CUTTERBAR

1шт.

Does Not Include Ref. 1 or 3.

1шт.

37

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

14шт.

38

87042223

YOKE

UNIVERSAL JOINT YOKE

1шт.

39

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

28шт.

40

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

22шт.

41

87042224

YOKE

UNIVERSAL JOINT YOKE

1шт.

43

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

44

86518194

NUT,3/4"-10, G8

28шт.

45

715289026

DIA KIT, HARVESTER

Hi Stub, Includes: (8) Ref. 24 & Instructions

1шт.

46

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 23 & (10) 14° CCW Blades, Ref 19

1шт.

46

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 23 & (16) 14° CCW Blades, Ref 19

1шт.

46

87037027

SET OF BLADES

Includes (16) 14° CW OS Blades, Ref 23 & (16) 14° CCW OS Blades, Ref 19

1шт.

47

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

1шт.

48

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

49

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

51

86633750

WEAR STRIP

1шт.
