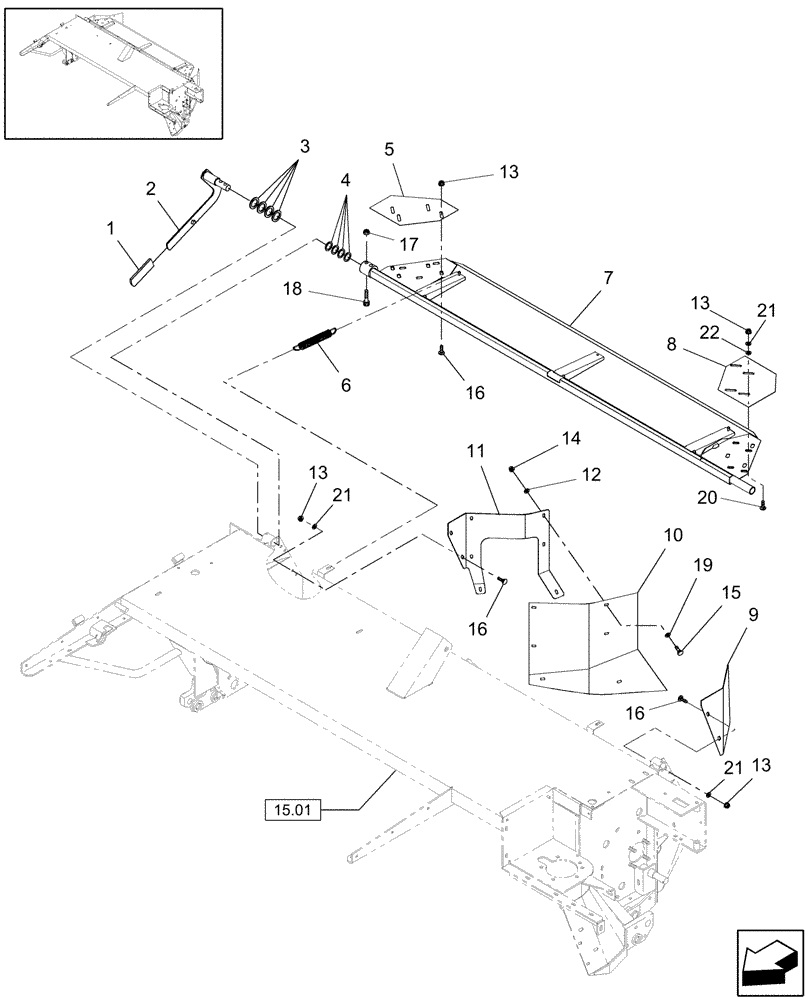

Запчасти Case IH DC92F (08.05/01) - SWATHGATE (08) - SHEET METAL

1

698486

HANDLE GRIP

1шт.

2

86543000

HANDLE

1шт.

3

267571

WASHER

1-3/8"

4/ARшт.

4

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

4/ARшт.

5

87032546

DEFLECTOR

1шт.

6

510362

SPRING

2шт.

7

87033195

GATE ASSY

Swathgate

1шт.

8

86543684

DEFLECTOR

1шт.

9

86543475

DEFLECTOR

1шт.

10

87038353

RUBBER

1шт.

11

87038352

DEFLECTOR

1шт.

12

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

13

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

14

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

15

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

16

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

17

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

18

86570628

HEX SOC SCREW,1/2" - 13 x 2"

2шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

20

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

22

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

8шт.
