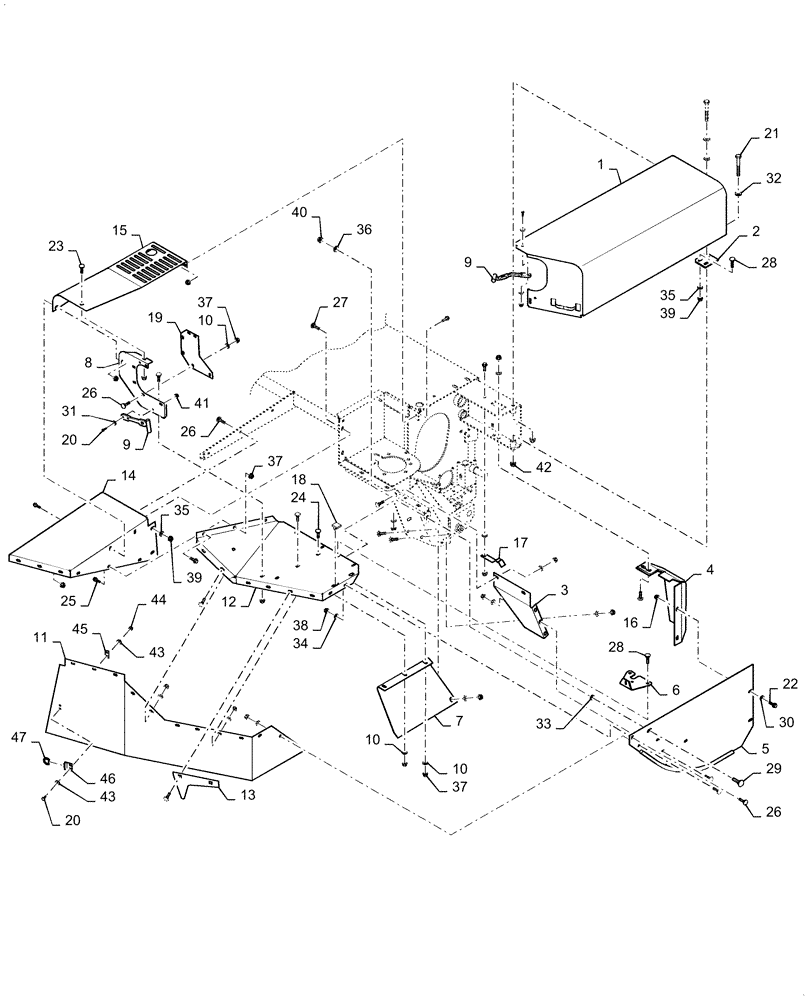

Запчасти Case IH DC92F (08.02/01) - SHIELDING, LH (08) - SHEET METAL

1

87029215

COVER

1шт.

2

86627071

BRACKET

Flat

1шт.

3

9861452

SHIELD

1шт.

4

86543258

SUPPORT

1шт.

5

9842608

SHEET METAL

1шт.

6

87049582

ANGLE

1шт.

7

87041775

SHIELD

1шт.

8

87029202

SHIELD

Front

1шт.

9

86000448

LATCH

2шт.

10

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

19шт.

11

87029221

SKIRT

LS

1шт.

12

87029212

SHIELD

LS

1шт.

13

86515293

PLATE

Include Decal, 86604890

1шт.

13

47832704

POINTER

1шт.

ASN YFN256652

1шт.

14

87029208

COVER

1шт.

15

87029205

SHIELD

Top

1шт.

16

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

17

86519154

LATCH

1шт.

18

138140

BUMPER

1шт.

19

87038404

FLAP

1шт.

20

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

21

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

22

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

23

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

24

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

1шт.

25

271288

BOLT,Hex Serr, 5/16" - 18 x 5/8", 5SPL, Full Thd

8шт.

26

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

26шт.

27

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

28

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

29

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

3шт.

30

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

31

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

32

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

33

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

13шт.

36

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

3шт.

37

145458

SERRATED NUT,5/16"-18 GR 5 ZND

34шт.

38

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

39

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

13шт.

40

86521607

FLANGE NUT,Flg, 1/2"-13, G5

3шт.

41

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

42

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

43

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

44

20356

NUT,1/4"-20, GB

2шт.

45

9604628

STRAP

Back Up

1шт.

46

9604627

STRAP

1шт.

47

9604626

RING

1шт.
