Запчасти Case IH DC92F (07.03) - HYDRAULIC CYLINDER, LIFT, SLAVE, MONARCH (07) - HYDRAULICS

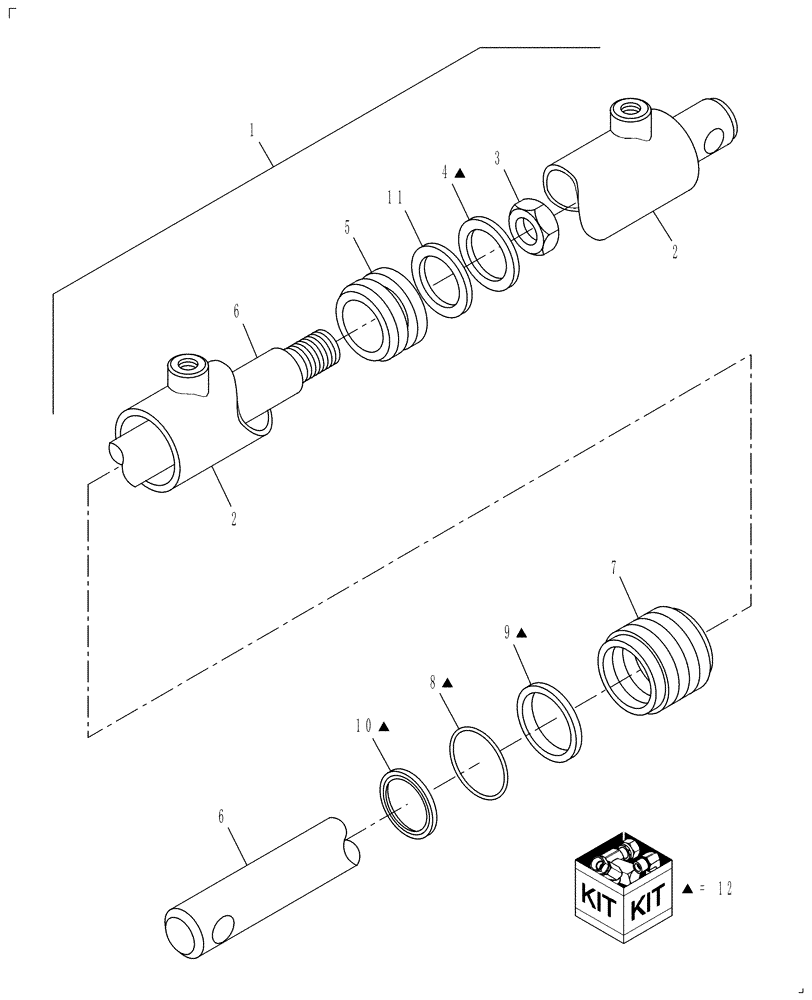

Схема запчастей Case IH DC92F - (07.03) - HYDRAULIC CYLINDER, LIFT, SLAVE, MONARCH (07) - HYDRAULICS
3
6
7
1
2
6
2
8
9
5
10
11
4

Артикул

Название

Примечание

Количество

1

87018039

HYDRAULIC CYLINDER,28.7mm Rod, 201.17mm Stroke

Lift

1шт.

1

87018039R

REMAN-HYD CYLINDER

DC92 ROLLS, DC92F FLAILS, Both PULL-TYPE DISC MOWER CONDITIONER, Lift (11/08-)

1шт.

1

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86553483

SEAL

3 Piece, Piston

1шт.

5

87026074

PISTON

1шт.

6

87026075

PISTON ROD

1шт.

7

87026073

HEAD

1шт.

8

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up, 1.772" ID x .043" Thk

1шт.

10

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Wiper

1шт.

11

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

12

87025444

SEAL KIT

Incl 4, 8 - 11

1шт.

Выбрано товаров: 14
