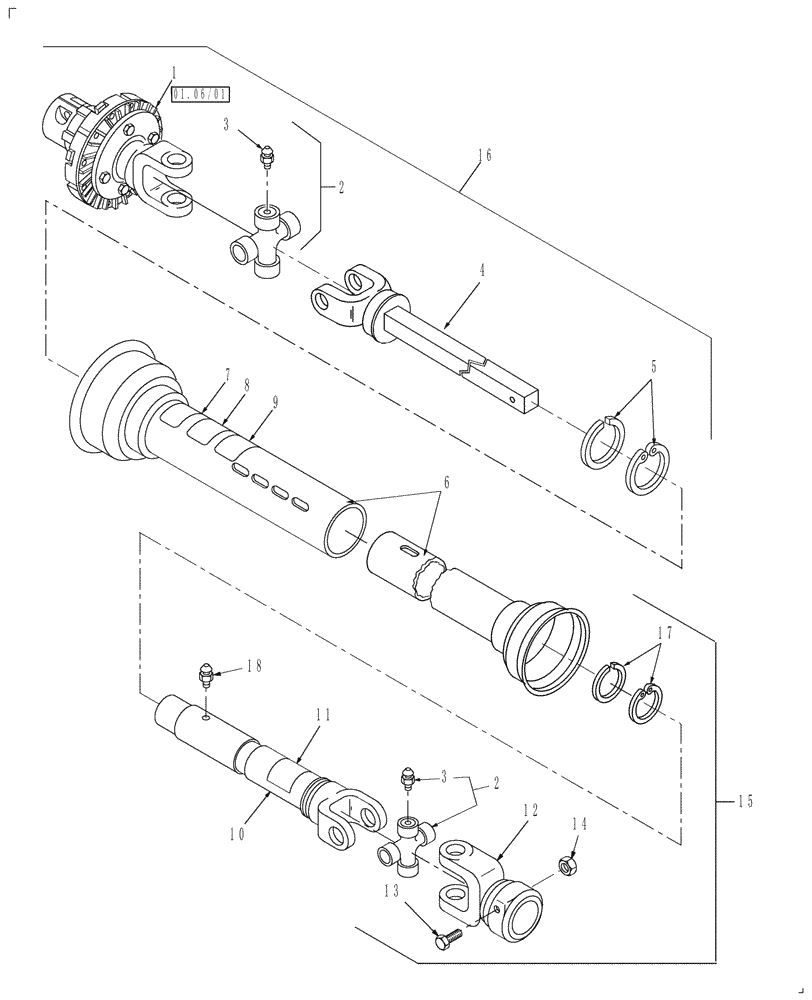

Запчасти Case IH DC92F (01.05/01) - SECONDARY PTO (01) - PTO DRIVE SHAFT

1

0C

ORDER COMPONENTS

Clutch

1шт.

2

87042232

CROSS

2шт.

3

88775

LUBE NIPPLE,1/4"-28

Straight

3шт.

4

87042235

YOKE

& Shaft

1шт.

5

87042238

REPAIR KIT

Includes: Bearing (1) & Retaining Ring (1)

1шт.

6

87042233

GUARD ASSY.

Set, Includes: Ref. 5, 7, 9, & 17

1шт.

Loctite patch should be 5 threads long and it starts 2 threads up from the bottom of the bolt.

1шт.

7

849471

DANGER DECAL

Rotating Driveline, English

1шт.

7

849482

DANGER DECAL

Rotating Driveline, French

1шт.

7

9801260

DANGER DECAL

DANGER, Rotating Driveline, Spanish

1шт.

8

87042237

DECAL

DANGER, Maximum Operating Speed

1шт.

9

86593134

DECAL

LUBE, English

1шт.

9

86593136

DECAL

LUBE, French

1шт.

9

86593135

DECAL

LUBE, Spanish

1шт.

10

87042236

YOKE

& Tube, Includes: Ref. 11

1шт.

11

849472

DANGER DECAL

Shield Missing, English

1шт.

11

849483

DANGER DECAL

Shield Missing, French

1шт.

11

9801256

DANGER DECAL

DANGER, Shield Missing, Spanish

1шт.

12

87042245

YOKE

1шт.

13

84246779

BOLT

1шт.

14

87025806

LOCK NUT

3шт.

15

87042246

FRONT PTO ASSY

Half, Includes: Ref. 2, 3, 10, 11, 12, 13, 14, 17, 18 & Guard

1шт.

16

87042247

REAR PTO ASSY

Half, Includes: Ref. 1, 2, 3, 4, 5, 7, 8, 9 & Guard

1шт.

17

87042234

KIT

Repair,Includes: Bearing (1) & Retaining Ring (1)

1шт.

18

86542773

LUBE NIPPLE

1шт.

19

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.
