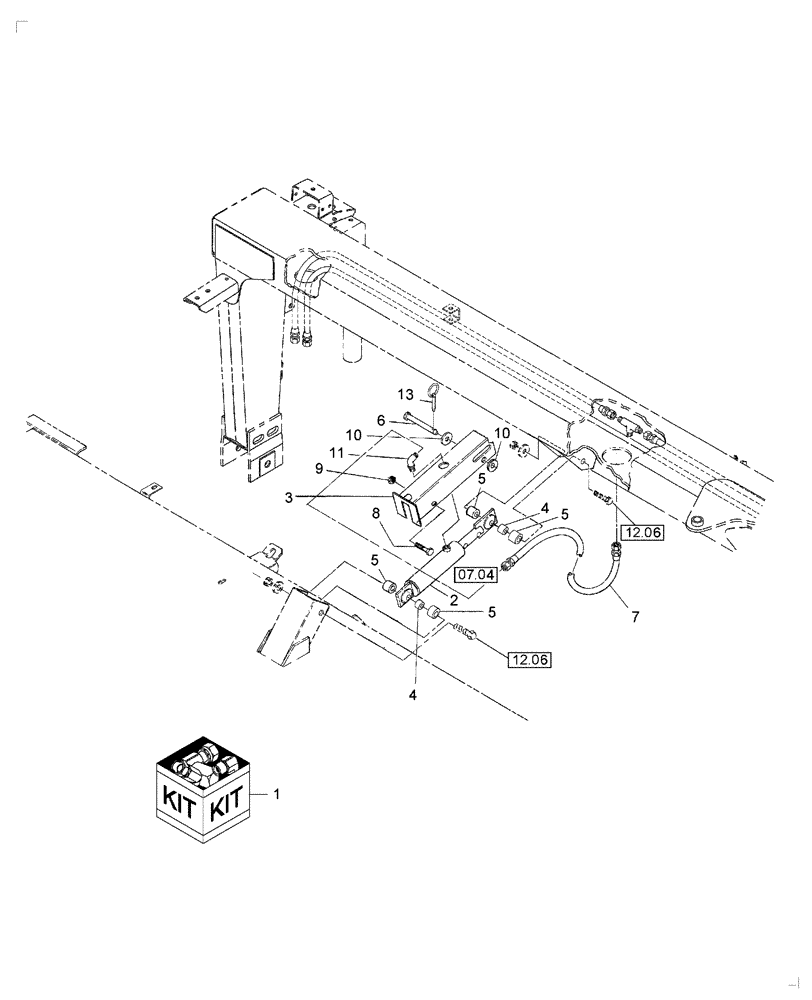

Запчасти Case IH DC92 (18.01) - KIT, HYDRAULIC TILT (18) - ACCESSORIES

1

715264006

DIA KIT, ADD PROD

Hydraulic Top Link, Includes: Ref. 2 Thru 13

1шт.

2

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

1шт.

87394809R

REMAN-HYD CYLINDER

DC92, DC92F, BOTH (11/08-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

3

86627885

CHAMBER

1шт.

4

87033961

BUSHING

2шт.

5

86599380

SPACER

4шт.

6

86510381

PIN

1шт.

7

176085

FLEXIBLE HOSE,9.53mm ID x 571.5mm L, SAE 100R1

1шт.

8

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

9

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

10

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4"

1шт.
