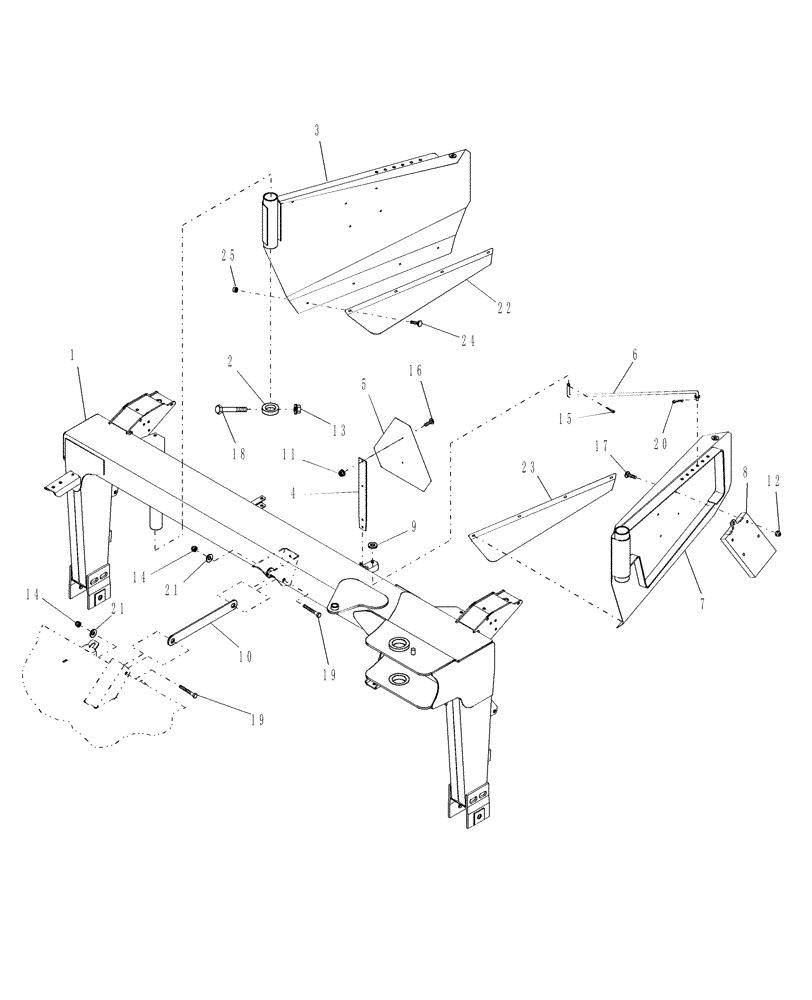

Запчасти Case IH DC92 (12.06/01) - TRAILFRAME, CENTER (12) - MAIN FRAME

1

87709912

FRAME

1шт.

2

86545693

COLLAR

2шт.

3

86627018

SHIELD

RH

1шт.

4

86535159

ARM

1шт.

5

86547710

EMBLEM

KIT

1шт.

6

86506511

ADJUSTMENT ROD

2шт.

7

86627020

SHIELD

LH

1шт.

8

86613674

CASE

1шт.

9

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

10

NS

NOT SERVICED

Strap, Shipping

1шт.

11

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

Flg, USR, #10-24

2шт.

12

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

13

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

14

280375

NUT,3/4"-10, GC

2шт.

15

394818

COTTER PIN,M5 x 25

2шт.

16

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

17

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

18

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

19

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

2шт.

20

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

2шт.

21

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

23

87038355

DEFLECTOR

LH

1шт.

24

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

12шт.

25

523282

SERRATED NUT,Flg, USR, 1/4"-20

8шт.
