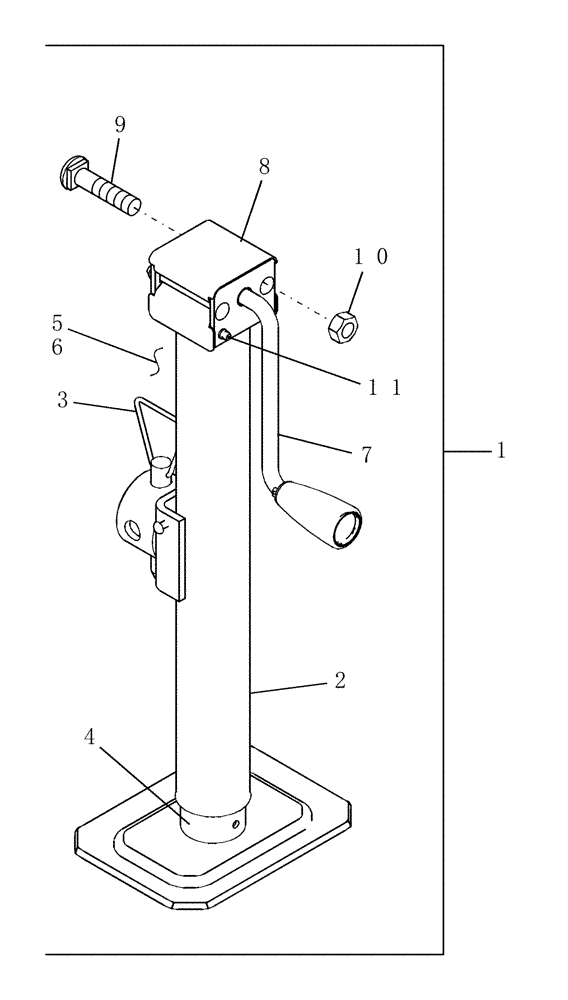

Запчасти Case IH DC92 (12.04) - JACK COMPONENTS (12) - MAIN FRAME

1

86617866

JACK

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Ass'y., Outer

1шт.

3

86590810

KIT

Pin & Chain

1шт.

4

NSS

NOT SOLD SEPARAT

Tube Ass'y., Inner

1шт.

5

86590811

KIT

Gear

1шт.

6

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

7

86590812

KIT

Crank

1шт.

8

86590816

COVER

Gearbox

1шт.

9

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

11

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.
