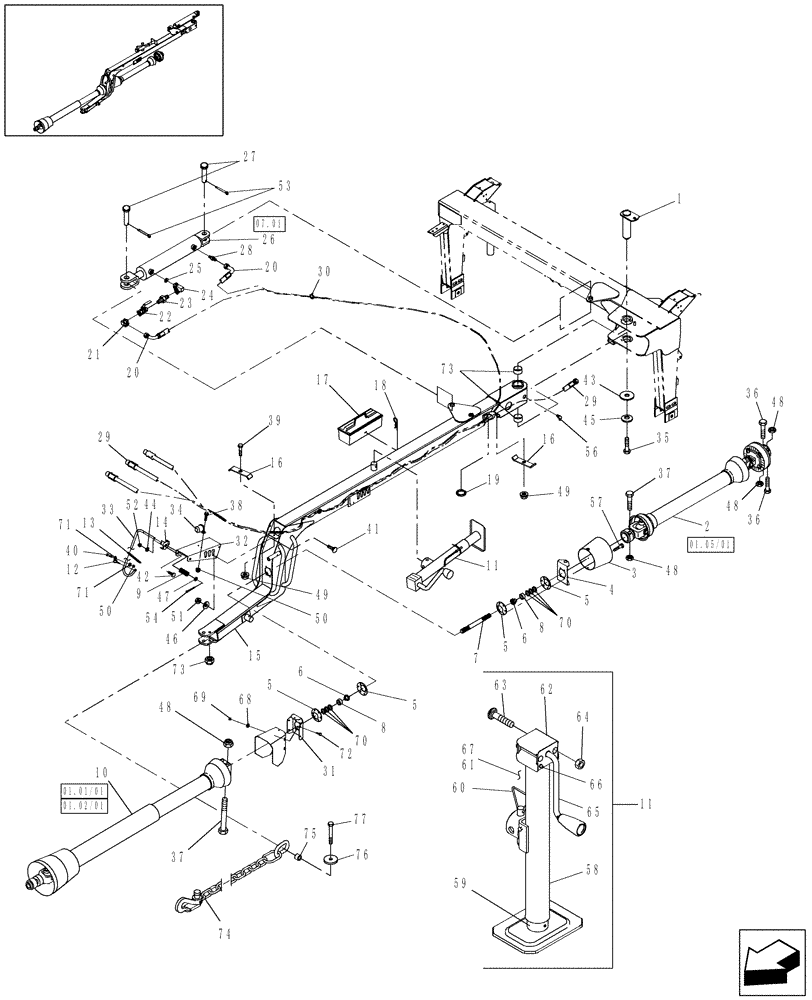

Запчасти Case IH DC92 (12.01) - TONGUE (12) - MAIN FRAME

1

86630513

PIN,69.85mm OD x 260mm L

1шт.

2

0C

ORDER COMPONENTS

Secondary PTO

1шт.

3

86549399

SHIELD

2шт.

4

87028414

BRACKET

2шт.

5

138820

FLANGED BEARING

4шт.

6

87029741

BEARING,34.92mm ID x 72mm OD x 19mm W

2шт.

7

87028923

SHAFT

1шт.

8

87046877

SPACER

2шт.

9

47603

SPRING

1шт.

10

0C

ORDER COMPONENTS

Primary PTO

1шт.

11

86617866

JACK

1шт.

12

270184

LINCH PIN,6.35mm OD

1шт.

13

87041970

LATCH

1шт.

14

87039662

LATCH

1шт.

15

87589853

TONGUE

Includes Decals

1шт.

16

86571694

CLAMP

2шт.

17

5135060

TOOL BOX

1шт.

18

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

1шт.

19

86604516

INSULATOR

, Serial Range: Cut-Fit

1шт.

20

87053826

HOSE ASSY.

L = 215"

2шт.

21

235131

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

22

87712321

VALVE

Control

1шт.

23

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

24

80271642

ELBOW

9/16"-3/8", 90°

1шт.

25

701811

ORIFICE

1шт.

26

87057805

HYDRAULIC CYLINDER

1шт.

27

514112

PIN

1" x 2-3/4"

2шт.

28

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

29

87053825

HOSE,0.38" ID x 260.00", SAE 100R1

1шт.

30

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

31

87730357

SUPPORT

1шт.

32

87037703

CHANNEL

1шт.

33

87037700

SUPPORT

1шт.

34

9611467

HOLDER

1шт.

35

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

36

281058

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

Part of PTO shaft.

1шт.

37

280620

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

Part of PTO shaft.

1шт.

38

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

39

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

40

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

41

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

42

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

43

86502976

WASHER

.78" ID x 3.75" OD x .25"

1шт.

44

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

45

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

1шт.

46

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

47

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

48

88871

NUT,1/2"-13, GC

3шт.

Part of PTO shaft.

1шт.

49

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

50

9626558

FLANGE NUT,Flg, 1/4"-20

3шт.

51

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

52

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

53

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

54

394818

COTTER PIN,M5 x 25

1шт.

55

87039765

SHIELD

Rubber

1шт.

56

84251

LUBE NIPPLE,30 Degree, 1/8" NPT x 2 5/64" lg

1шт.

57

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

58

NSS

NOT SOLD SEPARAT

Outer Tube

1шт.

59

NSS

NOT SOLD SEPARAT

Inner Tube

1шт.

60

86590810

KIT

Jack, Chain and Pin

1шт.

61

86590811

KIT

Gear

1шт.

62

86590816

COVER

1шт.

63

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

64

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

65

86590812

KIT

Crank

1шт.

66

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

67

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

68

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

5шт.

69

9823743

FLANGE NUT,Flg, 5/16"-18

5шт.

70

58630

WASHER,.0299" Thk

9шт.

71

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

72

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

5шт.

73

86511199

BUSHING,69.88mm ID x 76.35mm OD x 37.3mm L

2шт.

74

850116

CHAIN

1шт.

75

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

76

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

77

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

1шт.
