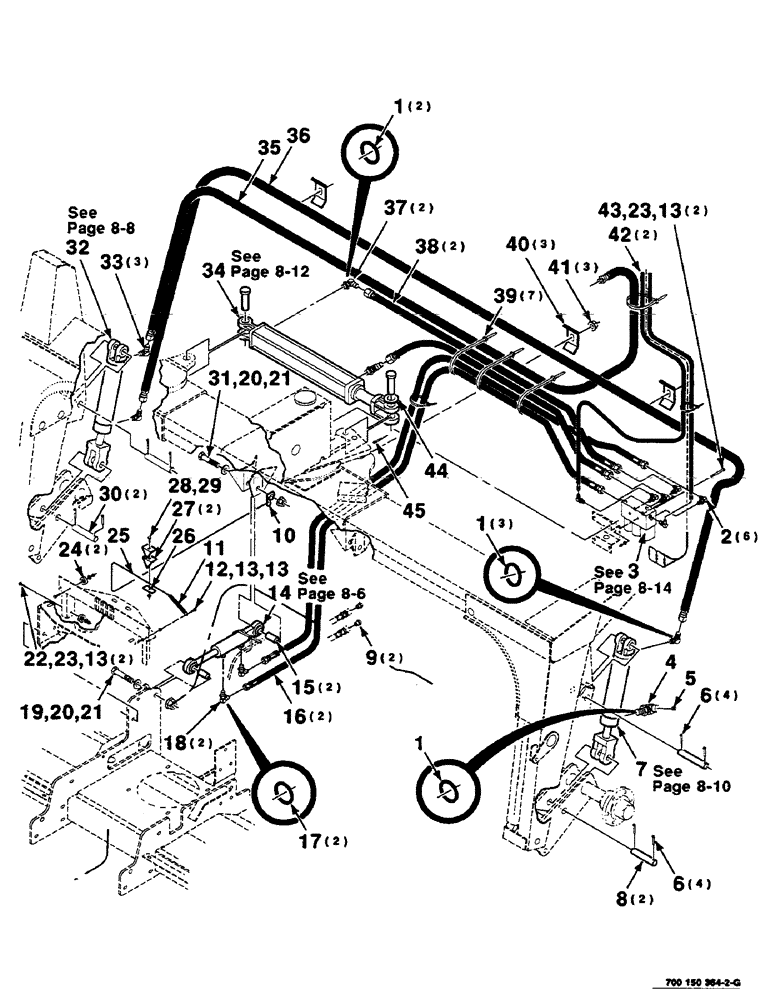

Запчасти Case IH DC515 (8-04) - HYDRAULIC ASSEMBLY, REAR (08) - HYDRAULICS

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

6шт.

3

700715903

VALVE

1шт.

4

218-5453

ELBOW,90 Degree, 3/4"-16 ORB x 3/8" NPT Fem

- 90 degrees (Includes item 1)

1шт.

5

700704639

PLUG

- vent

1шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

7

700712022

CYLINDER

- hydraulic

1шт.

8

700115185

PIN

- cylinder, lower

2шт.

9

218-774

PLUG,9/16"-18, 37 Degree

9/16-18 PLUG

2шт.

10

700127037

ANCHOR

1шт.

11

7758915

SPRING

- extension

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

13

425-104

NUT,1/4"-20, Cl 5

6шт.

14

700713582

CYLINDER

- hydraulic

1шт.

15

6108112

BUSHING

SPACER

2шт.

16

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

6.35 mm ID x 1525.00 mm

2шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

18

700707498

ELBOW

FITTING - elbow (Includes item 17)

2шт.

19

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

1шт.

20

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

21

232-53112

FLANGE NUT,Flg, 3/4"-10

NUT, Flg, 3/4"-10

2шт.

22

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

23

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

24

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING

2шт.

25

700713581

CABLE

ASSEMBLY

1шт.

26

700122988

LARGE PLATE

PLATE

1шт.

27

700127041

DIPSTICK

INDICATOR

2шт.

28

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

1шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

30

700130603

PIN

- cylinder, upper

2шт.

31

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

32

700712016

CYLINDER

- hydraulic

1шт.

33

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes item 1) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

3шт.

34

700718463

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

- hydraulic

1шт.

35

700700128

HOSE

- hydraulic

1шт.

36

1714716

HOSE

- hydraulic

1шт.

37

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

(Incl. item 1) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

2шт.

38

7796287

HOSE

- hydraulic

2шт.

39

306132C1

CABLE TIE,14.5" L

TIE - cable 14 in

7шт.

40

6246995

CLAMP

- line

3шт.

41

232-5316

FLANGE NUT,Flg, 3/8"-16

NUT, Flg, 3/8"-16

3шт.

42

7795487

HOSE

- hydraulic

2шт.

43

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

44

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

45

432-1228

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

1шт.
