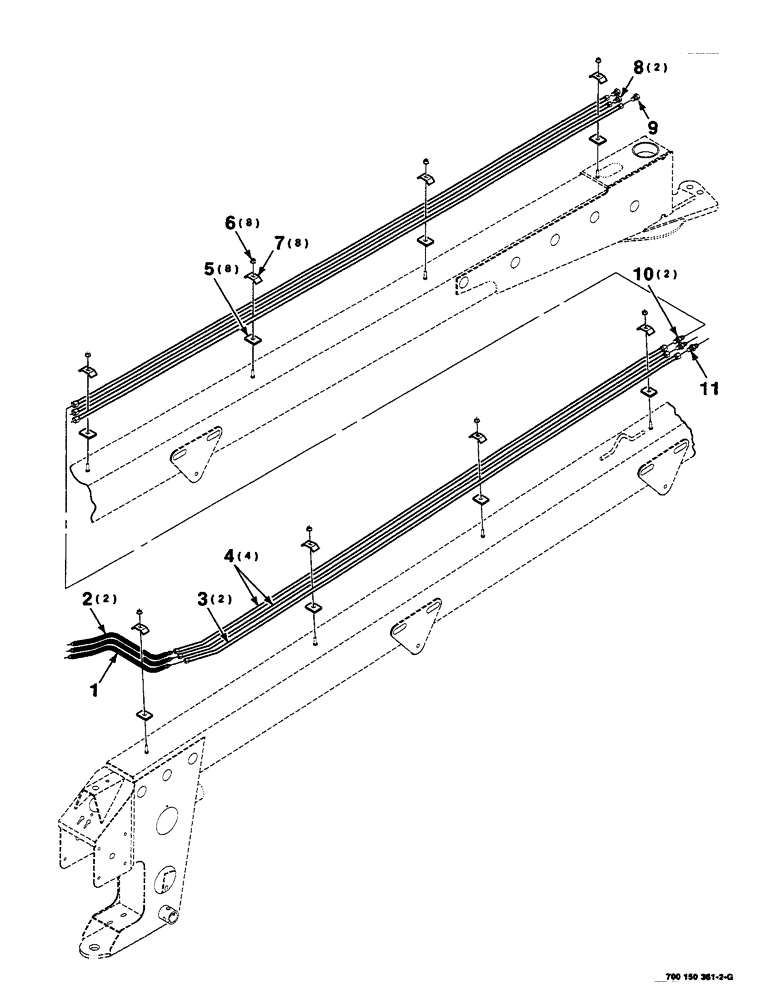

Запчасти Case IH DC515 (8-02) - HYDRAULIC ASSEMBLY, TONGUE (08) - HYDRAULICS

1

8842577

HOSE

- hydraulic

1шт.

2

700700568

HOSE

- hydraulic

2шт.

3

700713873

TUBE,12.7 mm OD, 3556 mm Length

LINE - hydraulic

2шт.

4

700713872

TUBE,9.52 mm OD, 3556 mm Length

LINE - hydraulic

4шт.

5

700121168

PAD

8шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

7

6246995

CLAMP

8шт.

8

218-774

PLUG,9/16"-18, 37 Degree

9/16-18 JIC PLUG

2шт.

9

218-775

PLUG,3/4"-16, 37 Degree

3/4-16 JIC PLUG

1шт.

10

846477

UNION

ADAPTER - straight

2шт.

11

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight

1шт.
