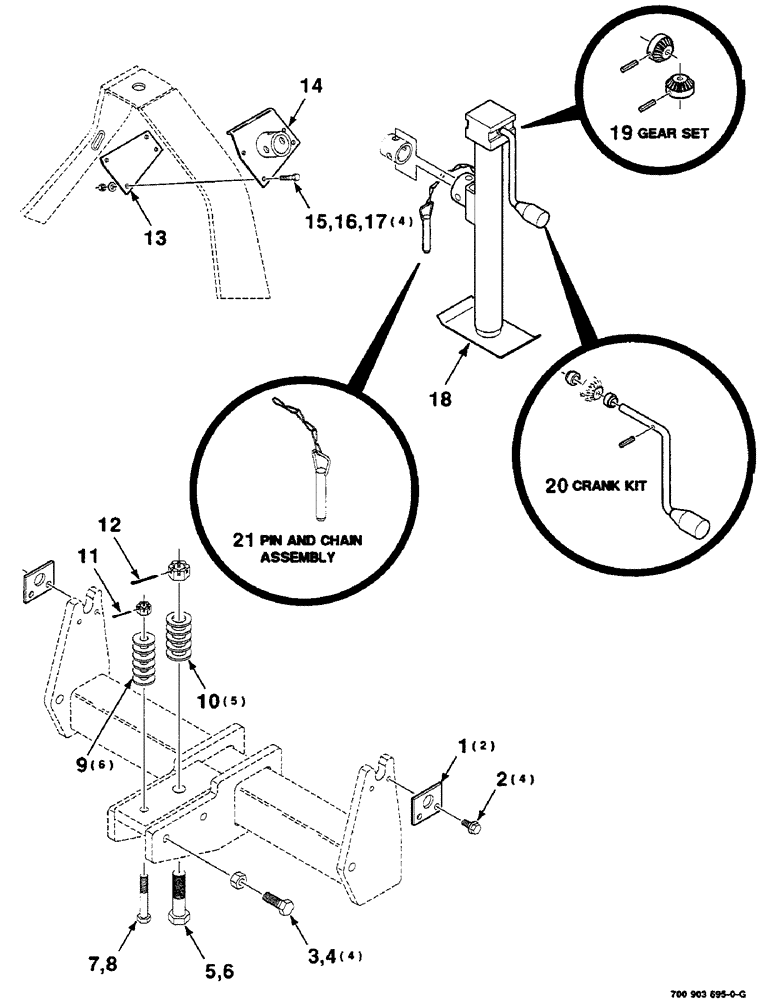

Запчасти Case IH DC515 (9-06) - 3 POINT DRAWBAR KIT, HK10888 3 POINT DRAWBAR KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK10888

DRAWBAR

3 POINT DRAWBAR KIT COMPLETE

1шт.

1

700133019

PLATE

2шт.

2

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

4

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

4шт.

5

700116537

SCREW

1-8 X 4-1/2 CAPSCREW - special

1шт.

6

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

7

700116536

SCREW

5/8-11 X 4 CAPSCREW - special

1шт.

8

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

9

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

6шт.

10

705574

WASHER,1 1/8" x 2" x .156", HDN

5шт.

11

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

12

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

1шт.

13

700133022

PLATE

- clamp

1шт.

14

700133020

SUPPORT

MOUNT WA - jack

1шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 X 1-1/4 C

4шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

17

425-105

NUT,5/16"-18, G5

4шт.

18

700709385

JACK

1шт.

19

700702059

KIT

GEAR SET

1шт.

20

700702060

CRANKED HANDLE

CRANK KIT

1шт.

21

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.
