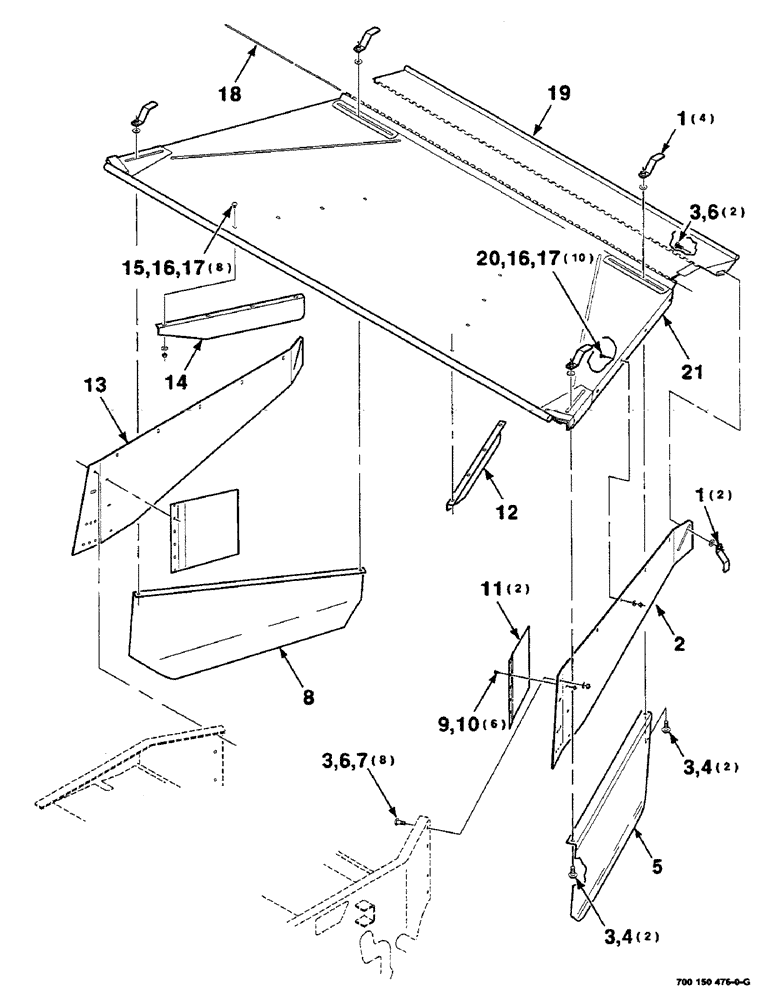

Запчасти Case IH DC515 (7-34) - FORMING SHIELDS ASSEMBLY (09) - CHASSIS

1

6232532

NUT

ASSEMBLY

6шт.

2

700130563

SUPPORT

- left

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

14шт.

4

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

5

700127393

SHIELD

- forming left

1шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

7

425-106

NUT,3/8"-16, Cl 5

8шт.

8

700127394

SHIELD

- forming right

1шт.

9

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

6шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

11

700128253

SHIELD

2шт.

12

700127395

FIN

- left

1шт.

13

700130565

SUPPORT

- right

1шт.

14

700127396

FIN

- right

1шт.

15

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

18шт.

17

425-105

NUT,5/16"-18, G5

18шт.

18

700130259

PIN

1шт.

19

700130568

DEFLECTOR

WA

1шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

10шт.

21

700130253

SHIELD

WA - top

1шт.
