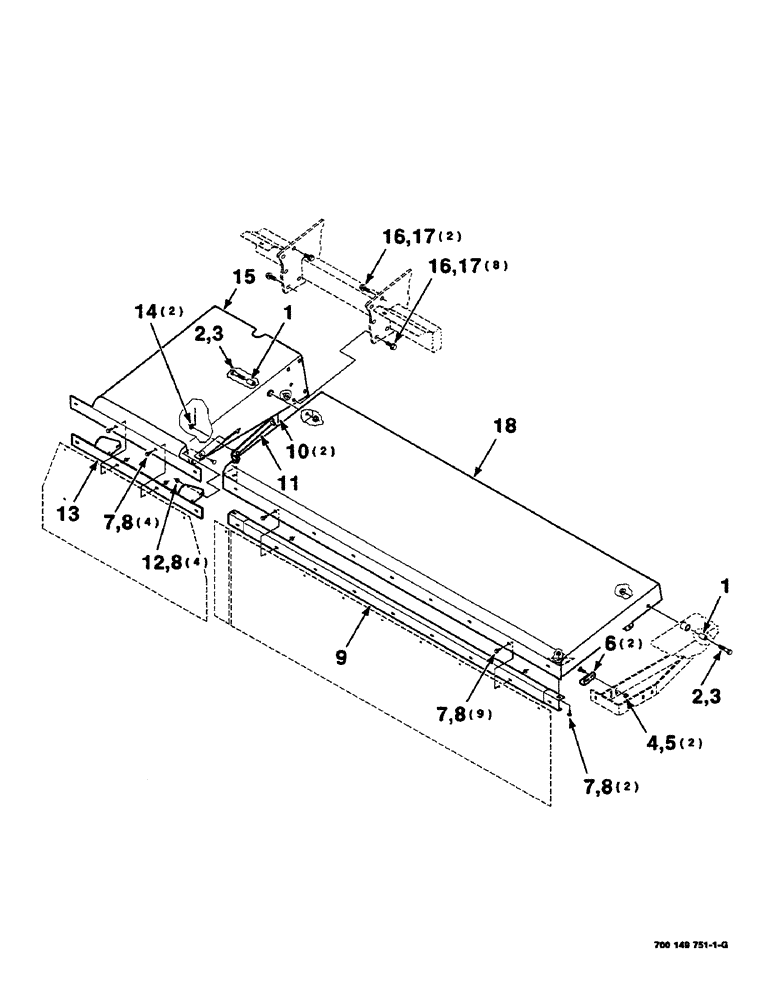

Запчасти Case IH DC515 (7-30) - SHIELDS ASSEMBLY, LEFT, CUTTERBAR (09) - CHASSIS

1

483284R1

SPACER

2шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

3

329-288

FLANGE NUT,Flg, 1/2"-13, G8

2шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

700149866

ANGLE

- stop

2шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

15шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

19шт.

9

700149900

CHANNEL

- front

1шт.

10

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

11

700127224

LATCH

WA

1шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

13

700149907

SUPPORT

WA - center

1шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

15

700149901

CHANNEL

WA - front

1шт.

16

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

10шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

18

700149893

PANEL

WA - shield

1шт.
