(7-28) - SHIELDS ASSEMBLY, CENTER

Запчасти Case IH DC515 (7-28) - SHIELDS ASSEMBLY, CENTER (09) - CHASSIS

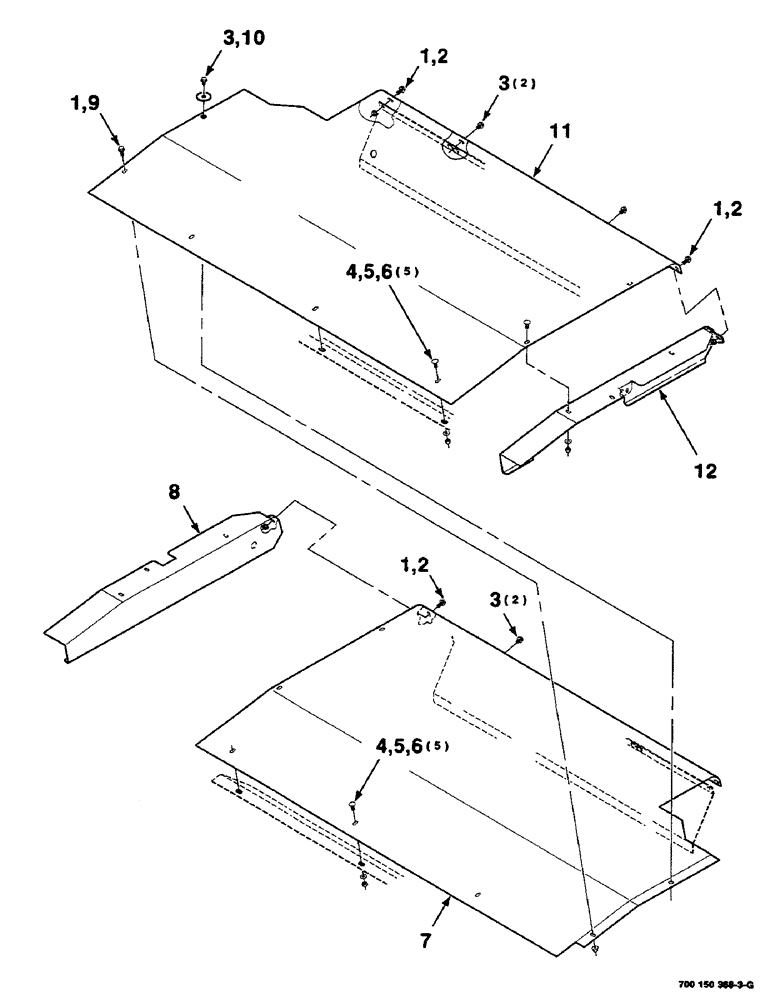

Схема запчастей Case IH DC515 - (7-28) - SHIELDS ASSEMBLY, CENTER (09) - CHASSIS
1
6
5
4
1
11
6
12
5
1
2
4
10
8
7
1
3
9
2
2
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

10шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

10шт.

6

425-105

NUT,5/16"-18, G5

10шт.

7

700150463

PANEL

- cover, right

1шт.

8

700150470

PANEL

- right

1шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

10

76695

WASHER

5/16 WASHER - large fender

1шт.

11

700150462

PANEL

- cover, left

1шт.

12

700150469

PANEL

- left

1шт.
