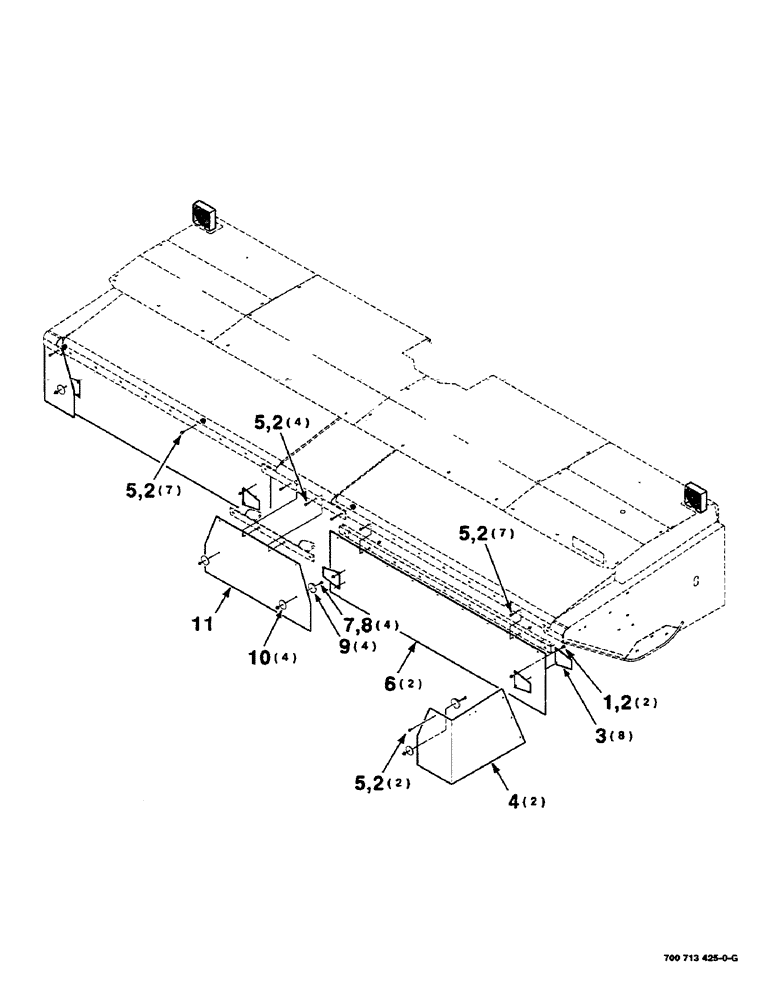

Запчасти Case IH DC515 (7-22) - CURTAIN ASSEMBLY (09) - CHASSIS

1

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

22шт.

3

700127153

LARGE PLATE

PLATE

8шт.

4

700713427

CURTAIN

- side

2шт.

5

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

20шт.

6

700713426

CURTAIN

- front

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

9

700712189

MAGNET

4шт.

10

382069

WASHER

3/8 WASHER

4шт.

11

700711831

CURTAIN

- center

1шт.
