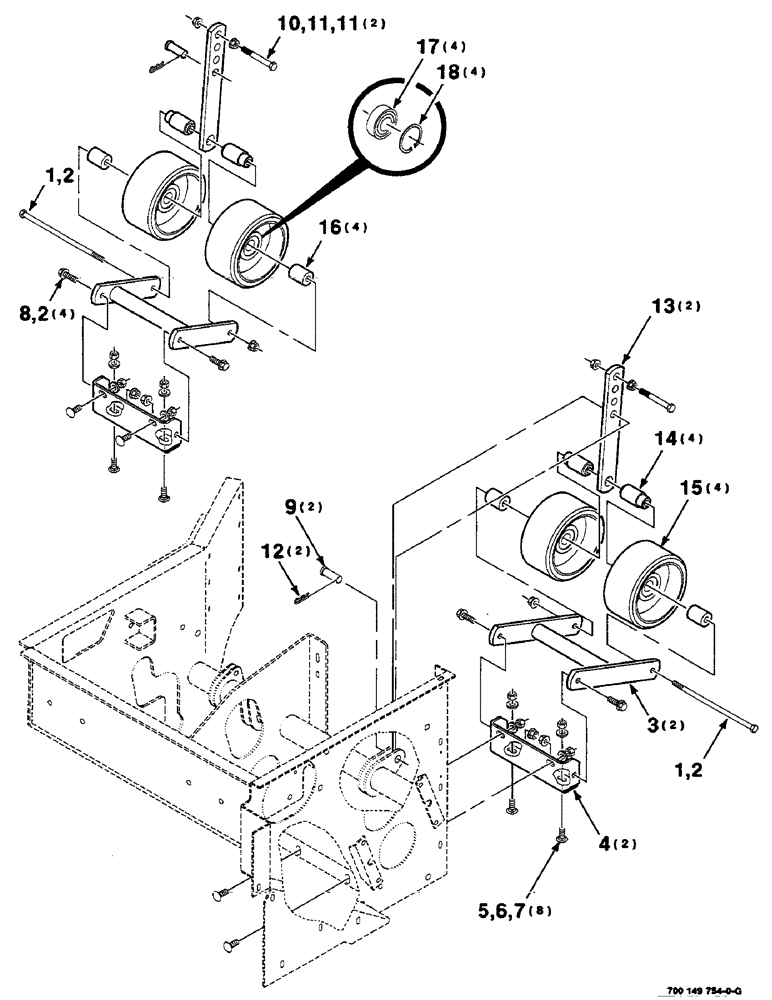

Запчасти Case IH DC515 (7-20) - GAUGE WHEEL ASSEMBLY (09) - CHASSIS

1

7773419

BOLT

1/2-13 X 12 B

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

3

700149953

STRAP

WA

2шт.

4

700130291

ANGLE

2шт.

5

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

8шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

8шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

8

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

4шт.

9

A35113

PIN

3/4 X 2 CLEVIS PIN

2шт.

10

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

12

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

13

700130292

STRAP

2шт.

14

700130290

SPACER

4шт.

15

700119691

WHEEL

ASSEMBLY (Includes items 17 and 18)

4шт.

16

700130293

SPACER

4шт.

17

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

BEARING - double row

4шт.

18

100-21218

SNAP RING,2.165", Int, #216

Ring, Snap, 2.165", Int, #216

4шт.
