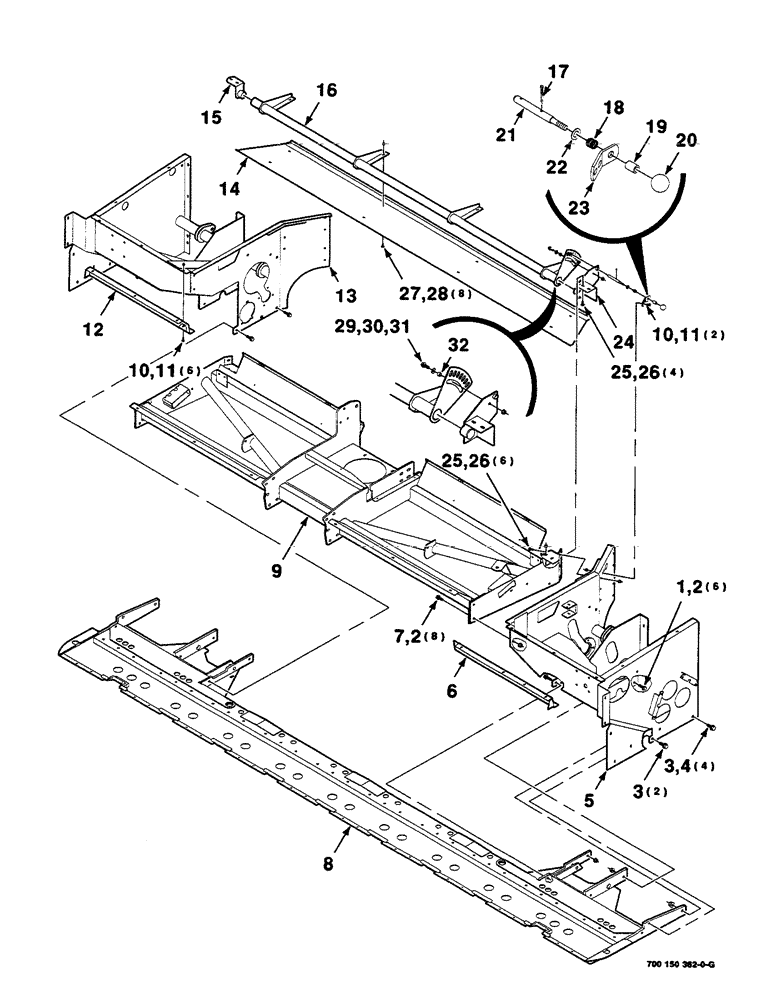

Запчасти Case IH DC515 (7-08) - HEADER FRAME ASSEMBLY (09) - CHASSIS

1

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

6шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

14шт.

3

700711262

BOLT

5/8-11 X 1-1/2 HFS GR8

6шт.

4

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

5

700149766

FRAME

WA - left

1шт.

6

700150397

SUPPORT

- left

1шт.

7

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

8шт.

8

700149812

CRADLE

WA

1шт.

9

700150385

FRAME

WA - center

1шт.

10

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

12

700150398

SUPPORT

- right

1шт.

13

700149767

FRAME

WA - right

1шт.

14

700149838

PANEL

- swathboard

1шт.

15

700149839

MOUNTING PARTS

MOUNTING WA - right

1шт.

16

700149830

PIPE

WA

1шт.

17

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

18

700703267

COMPRESSION SPRING

SPRING - compression

1шт.

19

6595516

SPACER

1шт.

20

721258

KNOB

1шт.

21

700134748

PIN

1шт.

22

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GAUGE NRMB

1шт.

23

700149847

SUPPORT

- latch pin

1шт.

24

700149834

MOUNTING PARTS

MOUNTING WA - left

1шт.

25

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

10шт.

26

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

27

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

28

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

8шт.

29

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

30

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

31

231-5146

FLANGE NUT,3/8"-16

1шт.

32

6489231

SPACER

1шт.
