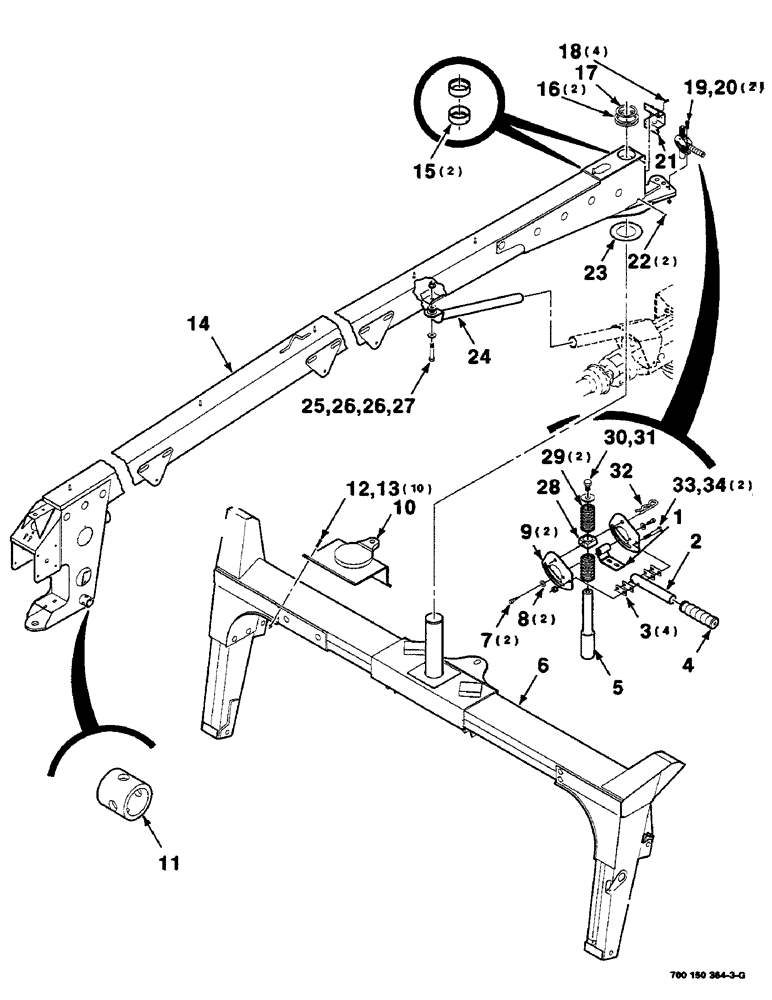

Запчасти Case IH DC515 (7-06) - TONGUE AND FRAME ASSEMBLY (09) - CHASSIS

1

700147271

MOUNTING PARTS

MOUNT WA - roading latch

1шт.

2

700147288

HANDLE

- roading latch

1шт.

3

700147279

SHIM

- roading latch

4шт.

4

27342

GRIP

HANDLE - grip

1шт.

5

700147270

PIN

- roading latch

1шт.

6

700150489

FRAME

MAINFRAME WA

1шт.

7

773820

BOLT,Shoulder, 1/4" - 20 x 5/16"

5/16 HSHSS (1/4-20 Thd)

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

9

700147268

CAM

- roading pin

2шт.

10

700115148

LUG

WA

1шт.

11

6227391

TUBE,2" OD, 1.88" Length

- jack

1шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

13

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

10шт.

14

700150487

TOW BAR

TONGUE WA (Includes item 15)

1шт.

15

7852379

BRONZE BUSHING,102.06mm ID x 114.4mm OD x 44.45mm L

- bronze

2шт.

16

700115299

WASHER

MACHINERY BUSHING - Spl, 5 OD

2шт.

17

700706827

RING, SNAP

RING - retaining, external

1шт.

18

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

4шт.

19

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

2шт.

20

425-105

NUT,5/16"-18, G5

2шт.

21

700127036

SUPPORT

- valve

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

23

700115300

WASHER

MACHINERY BUSHING - Spl, 6-3/4 OD

1шт.

24

700127362

SLIDE

WA

1шт.

25

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

26

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

27

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

28

700147269

TOW BAR

TRUNNION - roading latch

1шт.

29

700709793

SPRING

- compression

2шт.

30

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

1шт.

31

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

32

62455

PIN, SPLIT (COTTER)

.178 WIRE HAIR PIN COTTER

1шт.

33

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4 C

2шт.

34

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.
