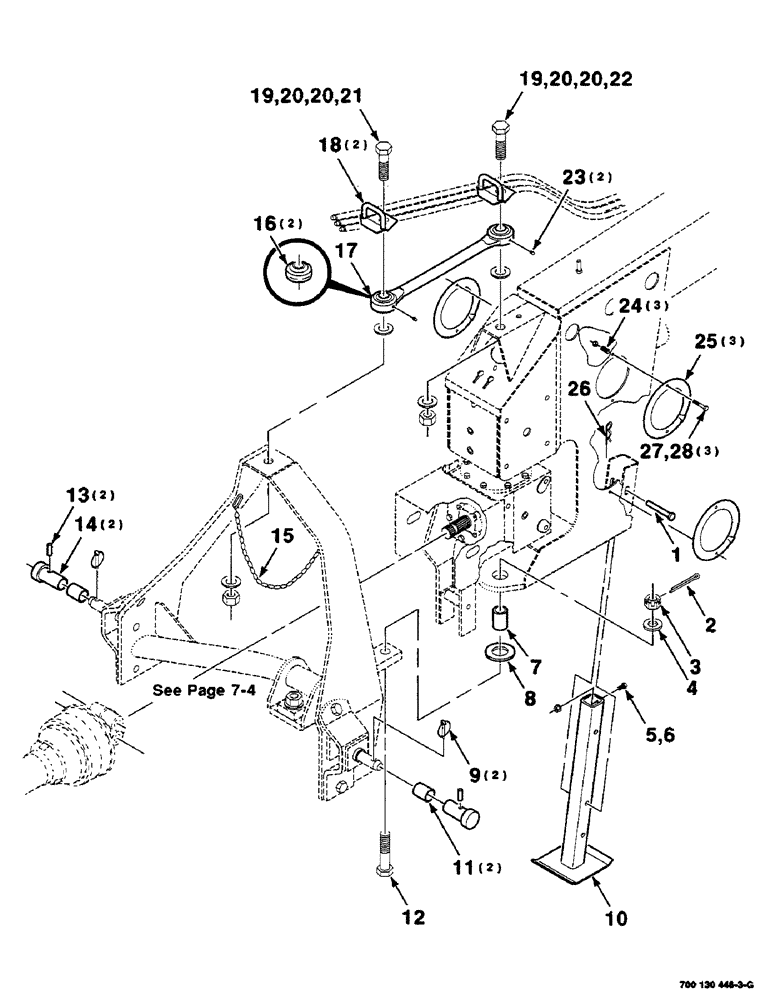

Запчасти Case IH DC515 (7-02) - HITCH AND JACK ASSEMBLY (09) - CHASSIS

1

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

1шт.

2

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

3

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

4

6210223

SPACER

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

7

700130558

SPACER

1шт.

8

96-81002

WASHER,1.53" ID x 3" OD x 0.26" Thk

1-1/2 HARDENED PLAIN WASHER

1шт.

9

D130037

HEADED PIN,8.73mm OD

KLIK PIN

2шт.

10

700130487

STAND

WA

1шт.

11

700130561

BUSHING

- cat III

2шт.

12

700116537

SCREW

1-8 X 4-1/2 C SPECIAL

1шт.

13

19242R1

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, 7/16" x 1 1/4", Slotted

2шт.

14

700130560

BUSHING

2шт.

15

700713885

CHAIN (AG)

CHAIN

1шт.

16

D51609

BALL JOINT

BEARING

2шт.

17

700130501

LINK

WA (Includes item 16)

1шт.

18

700130507

SUPPORT

WA - hose

2шт.

19

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

2шт.

20

705574

WASHER,1 1/8" x 2" x .156", HDN

4шт.

21

429-1016

NUT,1"-8, G8

1шт.

22

425-1016

NUT,1"-8, G5

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

24

CAS758342

SPRING

- compression

3шт.

25

487777

COVER

3шт.

26

S120261

PIN

.148 WIRE HAIR PIN COTTER

1шт.

27

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

3шт.

28

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.
