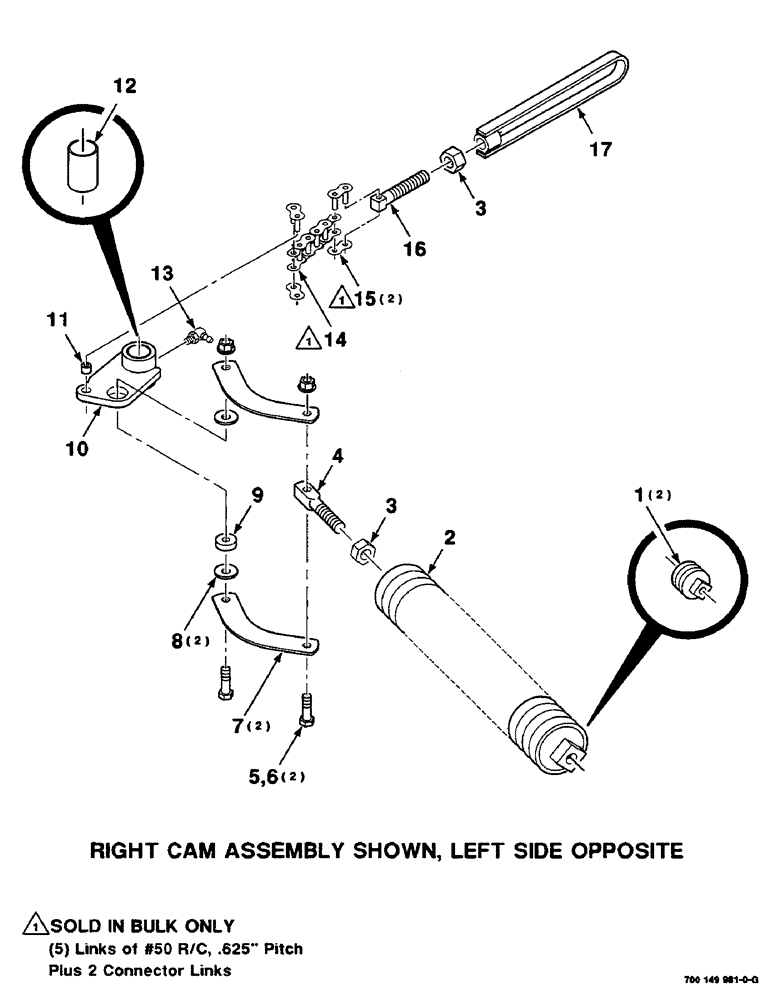

Запчасти Case IH DC515 (5-18) - CAM ASSEMBLY (09) - CHASSIS

1

6146542

SPRING NUT

- spring

2шт.

2

6171060

SPRING,11.25" L

ASSEMBLY (Includes item 1)

1шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

4

700119868

STUD

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

7

700119865

LINK

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

9

700706189

BALL BEARING,8mm ID x 22mm OD x 7mm W

BEARING

1шт.

10

700127417

CAM

WA (Includes item 12)

1шт.

11

700118104

SPACER

1шт.

12

740803

BUSHING

BEARING - sleeve

1шт.

13

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

14

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 Foot Bulk)

1шт.

15

47530

LINK, CONNECTING

LINK - connector, #50

2шт.

16

700118103

SPECIAL BOLT,1/2" - 13 x 2 1/2"

DRAWBOLT

1шт.

17

700149980

HANGER

WA

1шт.
