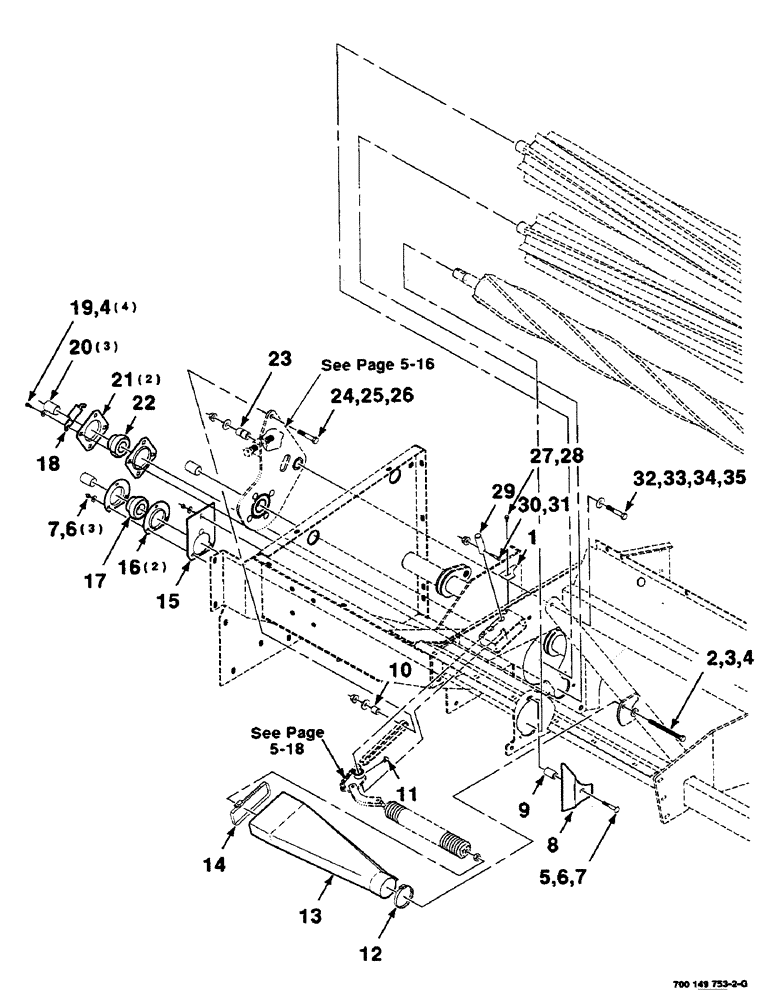

Запчасти Case IH DC515 (5-12) - HAY CONDITIONER ASSEMBLY, RIGHT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
700127123
LARGE PLATE
GAUGE
1шт.
2
873513
BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd
1/2-13 X 6 FTC
1шт.
3
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
4
495-21056
WASHER,1/2"
1/2 HARDENED PLAIN WASHER
5шт.
5
433-640
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5
3/8-16 X 2-1/2 RHSNB
1шт.
6
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
4шт.
7
425-106
NUT,3/8"-16, Cl 5
4шт.
8
700149950
PROTECTOR
- right, roll
1шт.
9
700133541
SPACER
- plated
1шт.
10
700108790
SPACER
1шт.
11
219-93
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
1шт.
12
214-1444
HOSE CLAMP,58.6mm - 82.5mm
CLAMP, HOSE, #44, 2.31/3.25 Type F Worm
1шт.
13
700717784
COVER
- H/C spring
1шт.
14
7720048
CLAMP
- hose
1шт.
15
700149946
PLATE
WA - bearing
1шт.
16
NLS
NO LONGER SERVICED
TTE - bearing
2шт.
17
611583R91
BALL BEARING
BEARING SPHERICAL
1шт.
18
700149942
FILLER
1шт.
19
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
20
700713521
COVER
3шт.
21
1307583C1
FLANGED BEARING
2шт.
22
50328
SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 18, 56.36 mm
- spherical
1шт.
23
6834394
BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L
1шт.
24
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
25
385625
WASHER
1шт.
26
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
1шт.
27
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
1шт.
28
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
1шт.
29
700118107
PIN,22.23mm OD x 80.01mm L
1шт.
30
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
1шт.
31
232-5315
FLANGE NUT,Flg, 5/16"-18
5/16-18 HFTLN GR/G
1шт.
32
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
1шт.
33
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN
1шт.
34
700711165
WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk
5/8 HARDENED WIDE PLAIN WASHER
1шт.
Выбрано товаров: 35
