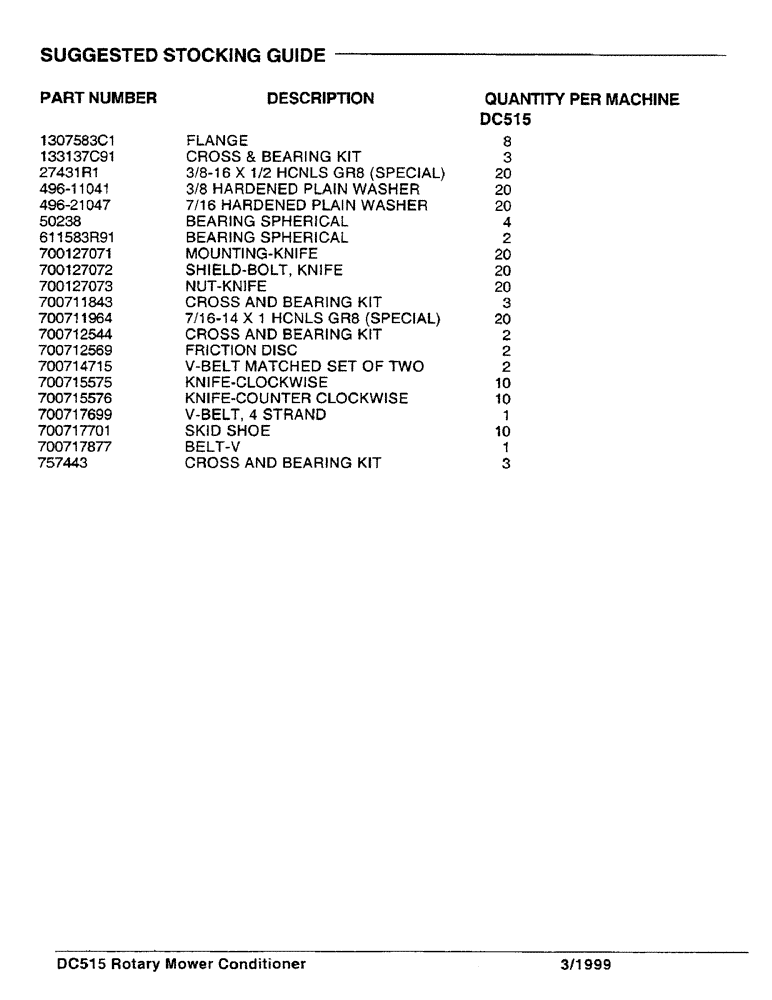

Запчасти Case IH DC515 (1) - SUGGESTED STOCKING GUIDE (00) - PICTORIAL INDEX

1307583C1

FLANGED BEARING

8шт.

133137C91

KIT

CROSS & BEARING KIT

3шт.

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

3/8-16 X 1/2 HCNLS GR8 (Special)

20шт.

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

20шт.

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

20шт.

50238

BEARING SPHERICAL

4шт.

611583R91

BALL BEARING

BEARING SPHERICAL

2шт.

700127071

MOUNTING PARTS

MOUNTING - knife

20шт.

700127072

SHIELD

- bolt, knife

20шт.

700127073

NUT

- knife

20шт.

700711843

FLEXIBLE JOINT

CROSS AND BEARING KIT

3шт.

700711964

BOLT,Hex, 7/16" - 14 x , Gr 8

7/16-14 X 1 HCNLS GR8 (Special)

20шт.

700712544

JOURNAL

CROSS AND BEARING KIT

2шт.

700712569

DISC

FRICTION DISC

2шт.

700714715

SET OF BELTS,891.50 mm L

2 Matched, V-Belt 891.50 mm L

2шт.

700715575

KNIFE

- clockwise

10шт.

700715576

KNIFE

- counter clockwise

10шт.

700717699

SET OF BELTS,1600.20 mm L

4 Strand, V-Belt

1шт.

700717701

SKID/SHOE

SKID SHOE

10шт.

700717877

BELT

-V

1шт.

757443

U-JOINT SPIDER

CROSS AND BEARING KIT

3шт.
