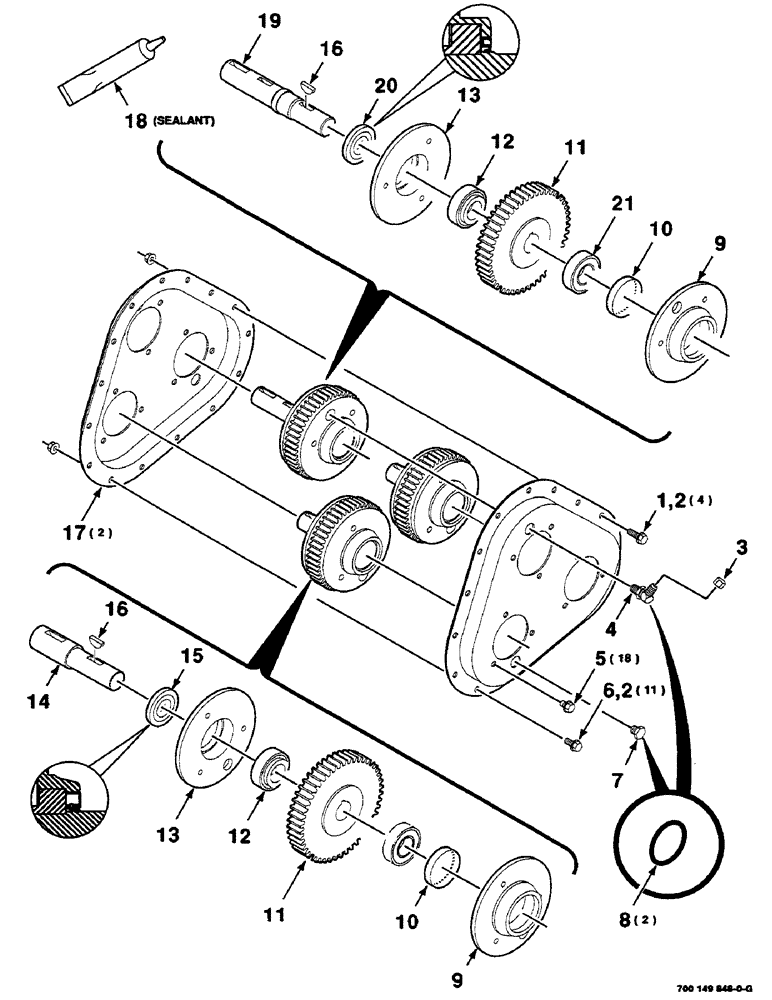

Запчасти Case IH DC515 (5-02) - GEARBOX ASSEMBLY (09) - CHASSIS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

2

231-5146

FLANGE NUT,3/8"-16

15шт.

3

218-755

CAP,37 Degree, 3/4"-16

1шт.

4

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Incl. item 8) 45º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

5

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 X 1/2 HWHMS

18шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

11шт.

7

214389

PLUG,3/4" - 16 ORB

(Includes item 8) Hex Hd, 3/4"-16 ORB

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

9

700130244

RETAINER

- bearing

2шт.

10

700712677

PLUG

2шт.

11

700713436

GEAR

2шт.

12

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

- cylindrical

2шт.

13

700130303

RETAINER

- bearing

2шт.

14

700130246

SHAFT

- lower

1шт.

15

7044951

OIL SEAL

- oil

1шт.

16

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

17

700149850

CASE

GEARCASE - half

2шт.

18

700716946

SEALANT

SEALANT - 13 oz tube

1шт.

19

700130243

SHAFT

- upper

1шт.

20

700708327

SEAL

1шт.

21

618210R92

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

BEARING - cylindrical

1шт.
