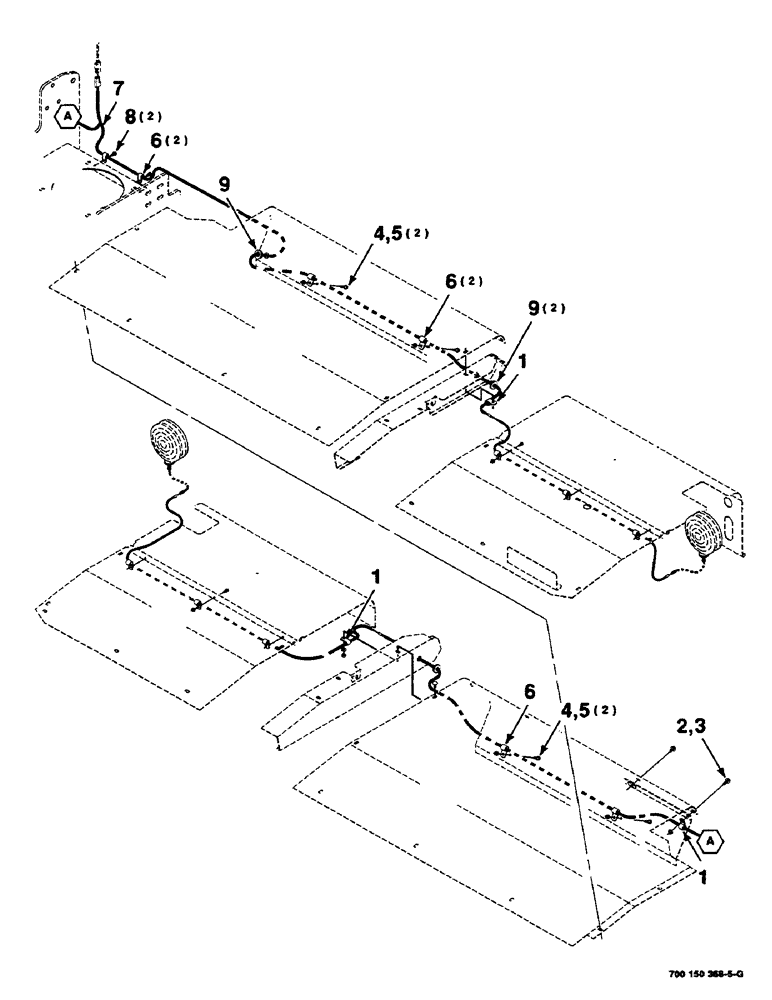

Запчасти Case IH DC515 (4-04) - FLASHER LIGHT HARNESS ASSEMBLY (09) - CHASSIS

1

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line 3/8", Insul, 5/16" Bolt

3шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

4

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

6

751321

CLAMP

5шт.

7

700717878

HARNESS

- wire

1шт.

8

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

1/4-20 X 1/2 HWHTCTS

2шт.

9

7827983

GROMMET

3шт.
