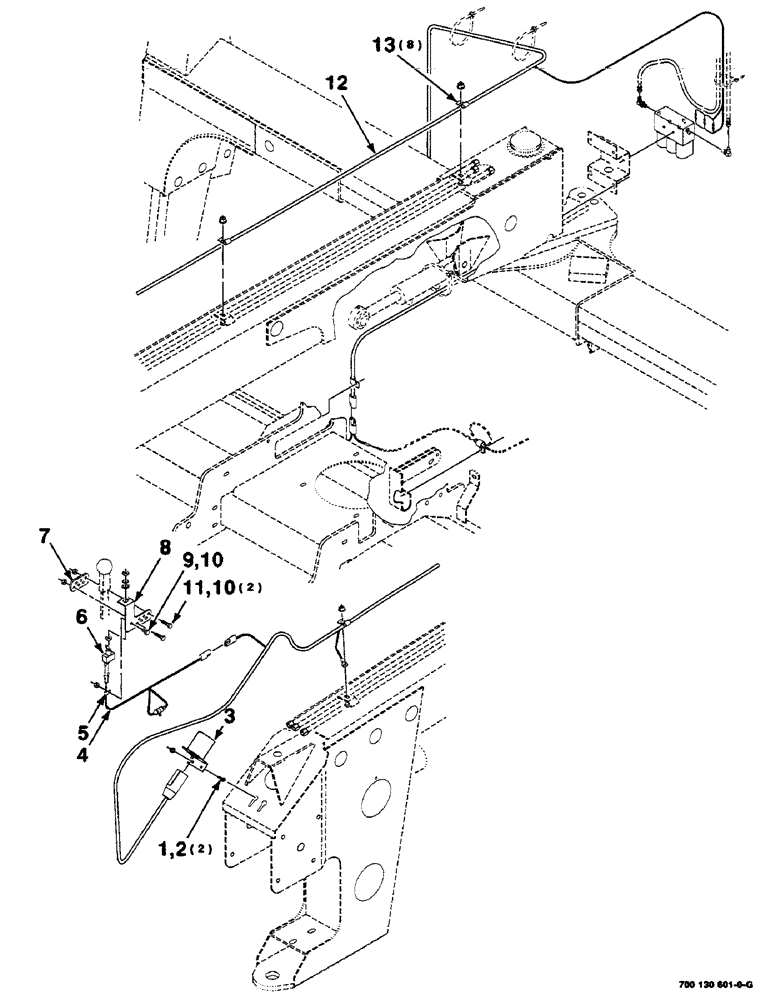

Запчасти Case IH DC515 (4-02) - ELECTRICAL ASSEMBLY (09) - CHASSIS

1

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

2шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

3

183727C1

CAP

- plug, electric

1шт.

4

700714010

HARNESS

- wire, tractor

1шт.

5

751321

CLAMP

1шт.

6

700707449

SWITCH

- toggle

1шт.

7

700127040

STRAP

1шт.

8

700127039

SUPPORT

- switch

1шт.

9

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

10

425-104

NUT,1/4"-20, Cl 5

3шт.

11

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

12

700714009

HARNESS

- wire, implement

1шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

8шт.
