(3-12) - U-JOINT ASSEMBLY, CUTTER DISC, 700711841 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH DC515 (3-12) - U-JOINT ASSEMBLY, CUTTER DISC, 700711841 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS

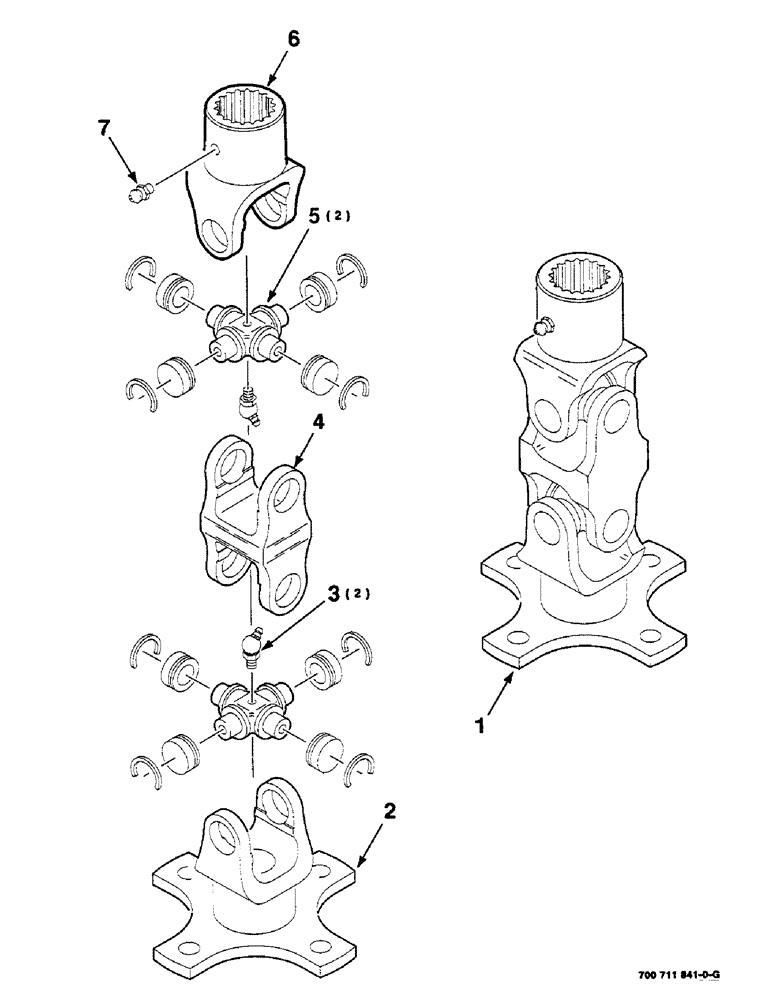

Схема запчастей Case IH DC515 - (3-12) - U-JOINT ASSEMBLY, CUTTER DISC, 700711841 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS
1
7
5
3
4
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711841

FLEXIBLE JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

700708937

FORK

YOKE & FLANGE

1шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK - 65

2шт.

4

757427

FORK

YOKE - double

1шт.

5

757443

U-JOINT SPIDER

CROSS AND BEARING KIT

2шт.

6

700711938

FORK

YOKE - splined

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
