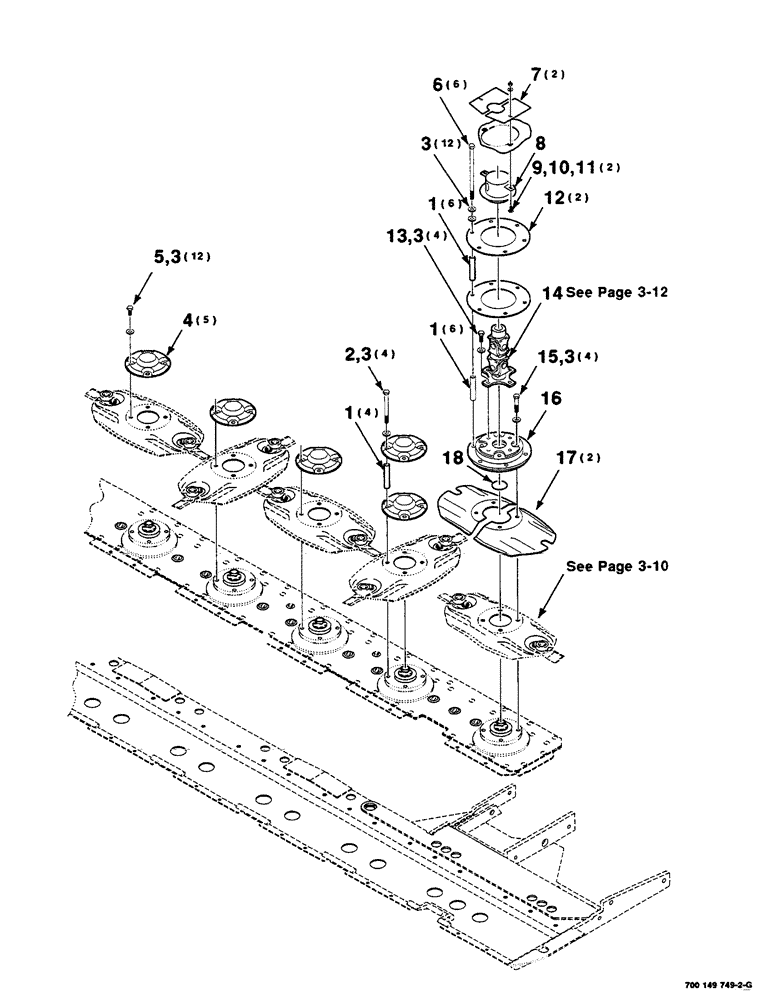

Запчасти Case IH DC515 (3-06) - CUTTER DISC ASSEMBLY, LEFT (09) - CHASSIS

1

6559314

SPACER

16шт.

2

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-20 X 5 C

4шт.

3

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

36шт.

4

700127062

CAP

- disc

5шт.

5

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

12шт.

6

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

6шт.

7

700149977

COVER

2шт.

8

700149978

TUBE

WA - shield

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

700127061

RING

CAGE

2шт.

13

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

M12 X 1.25 X 30C

4шт.

14

700711841

FLEXIBLE JOINT

U-JOINT ASSEMBLY

1шт.

15

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

4шт.

16

700127059

ADAPTER

- disc drive

1шт.

17

700717700

GRAIN LIFTER

LIFTER

2шт.

18

7722440

PLUG

1шт.
