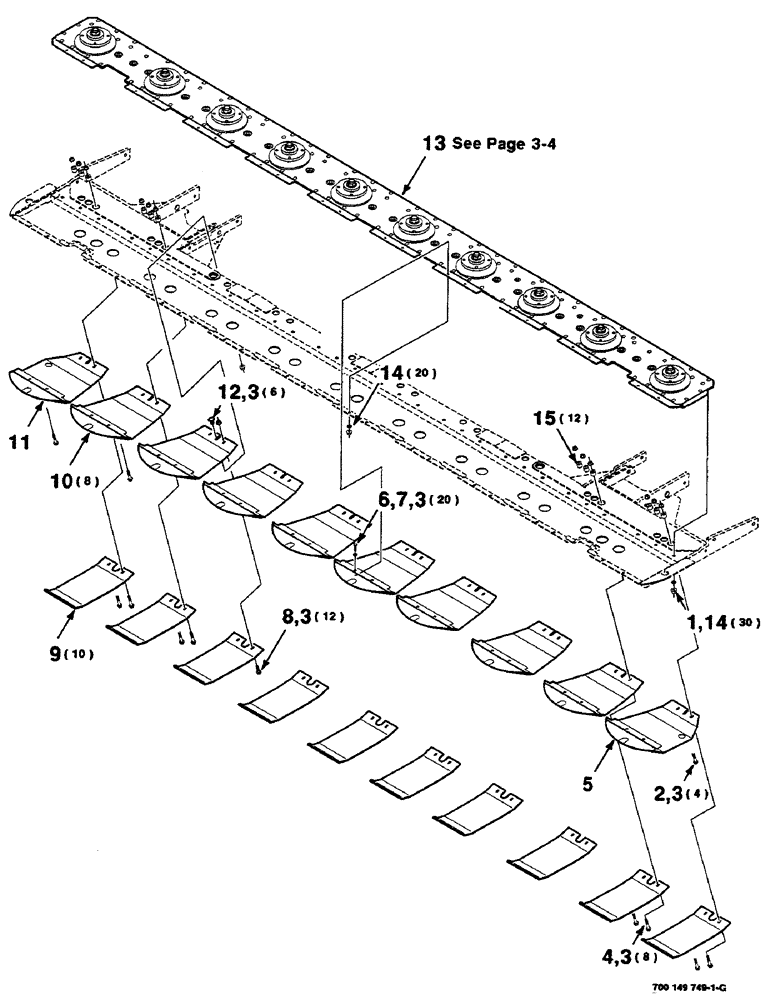

Запчасти Case IH DC515 (3-02) - CUTTER BAR, ROCK GUARD AND SKID SHOE ASSEMBLY (09) - CHASSIS

1

7774664

NUT

H CL 10

30шт.

2

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

4шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

50шт.

4

700711132

BOLT

3/8-16 X 2 HFS GR8

8шт.

5

700149861

GUARD

WA - rock, left

1шт.

6

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

20шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

20шт.

8

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

12шт.

9

700717701

SKID/SHOE

SKID SHOE

10шт.

10

700149858

GUARD

WA - rock

8шт.

11

700149863

GUARD

WA - rock, right

1шт.

12

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

13

700717697

CUTTER BAR

ASSEMBLY

1шт.

14

700149867

SPACER

HARDENED SPECIAL WASHER

50шт.

15

6457782

SPACER

12шт.
