(2-26) - GEARBOX ASSEMBLY, INNER, 700714040 GEARBOX ASSEMBLY COMPLETE

Запчасти Case IH DC515 (2-26) - GEARBOX ASSEMBLY, INNER, 700714040 GEARBOX ASSEMBLY COMPLETE (09) - CHASSIS

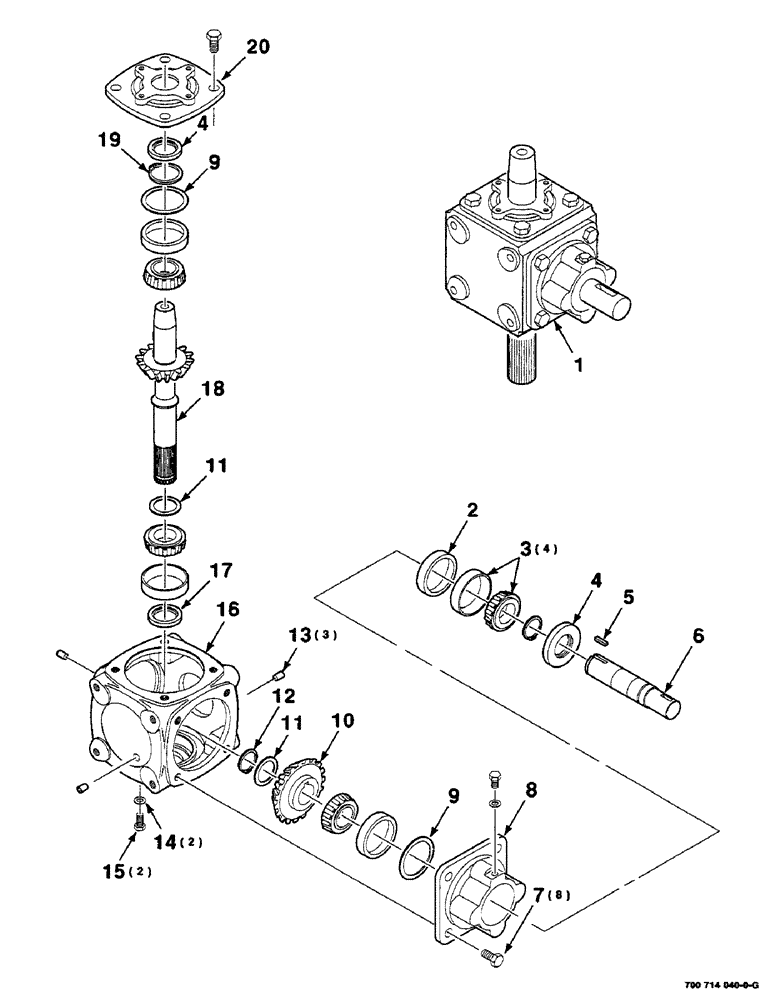

Схема запчастей Case IH DC515 - (2-26) - GEARBOX ASSEMBLY, INNER, 700714040 GEARBOX ASSEMBLY COMPLETE (09) - CHASSIS
15
18
4
19
11
1
10
14
6
2
3
20
11
12
8
5
4
9
17
7
16
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714040

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700714040R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

700714040C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

700713541

SPACER

1шт.

3

700712361

BEARING,35mm ID x 72mm OD x 24.25mm W

ASSEMBLY - tapered

4шт.

4

700712389

OIL SEAL

- oil

2шт.

5

700713547

KEY

- straight 10 x 8 x 25

1шт.

6

700713546

SHAFT

1шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

8

700713543

EXTENSION

1шт.

9

700712378

SHIM

PACK 71.5 mm

2шт.

10

700713536

GEAR

Z19 M5

1шт.

11

700712360

SHIM KIT

SHIM PACK 48.0 mm

2шт.

12

700712388

RING

- retaining

1шт.

13

700712200

PLUG

- 3/8 gas

3шт.

14

700714122

WASHER

- copper

2шт.

15

700714123

BOLT

M8 X 10

2шт.

16

700713539

CASTING

T2

1шт.

17

700712392

OIL SEAL

- oil

1шт.

18

700713548

SHAFT

- pinion

1шт.

19

700712375

SNAP RING

RING - retaining

1шт.

20

700714120

COVER

- gearbox

1шт.
